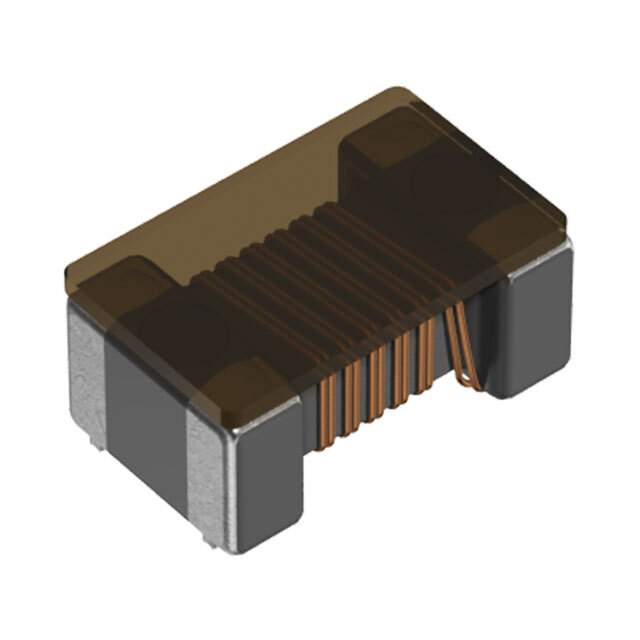

ACM2012E-900-2P-T00

Part No ACM2012E-900-2P-T00
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 330MA 2LN 90 OHM SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 90 Ohm @ 100MHz
Current Rating (Max) 330mA
DC Resistance (DCR) (Max) 350 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.043" (1.10mm)
Dimension 0805 (2012 Metric), 4 PC Pad
Win Source Part Number 198481-ACM2012E-900-2P-T00
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ACM2012E-900-2P-T00 CAD Model

Description

The ACM2012E-900-2P-T00 is tailored for high-performance applications, offering cutting-edge features that ensure optimal functionality in diverse operational settings.

Features and Benefits

  • Excellent frequency response for improved function.
  • Reduced electromagnetic emissions enhancing environmentally safe operations.
  • High compatibility with a range of electronic devices.

Applications

  • Satellite communication systems
  • Renewable energy control systems
  • Advanced automotive systems

The ACM2012E-900-2P-T00 is engineered to provide superior performance, ideal for cutting-edge technology applications where precision and efficiency are paramount.
