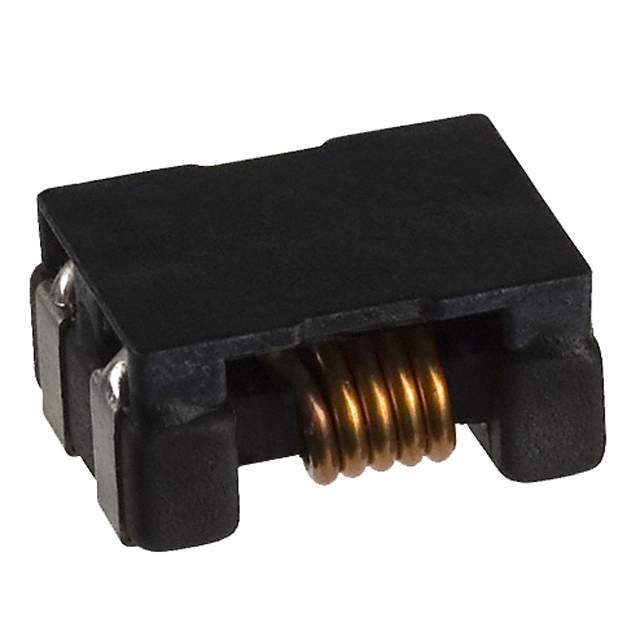

ACM7060-701-2PL-TL01 TDK Corporation
Same model may have multiple batches, images only for reference.

ACM7060-701-2PL-TL01

Part No ACM7060-701-2PL-TL01
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description Common Mode Chokes Dual 1.5uH 700Ohm 100MHz 4A 0.015Ohm DCR SMD T/R / CMC 4A 2LN 700 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 700 Ohm @ 100MHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 15 mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.138" (3.50mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 007860-ACM7060-701-2PL-TL01
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Consumer Electronics
Family Name ACM
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian ACM7060-701-2PL-TL01 CAD Model

Description

ACM7060-701-2PL-TL01 Precision Inductor

The ACM7060-701-2PL-TL01 is designed for precision and reliability in power distribution networks. It is equipped with advanced materials to minimize loss and maximize performance.

  • Applications:
    • Energy-efficient appliances
    • Medical equipment
    • Data centers
  • Features & Benefits:
    • High precision inductance
    • Low resistance and high efficiency
    • Enhanced thermal properties
    • Environmentally sustainable
  • Additional Details: Built for minimal acoustic noise, ensuring quiet operation in sensitive environments.
