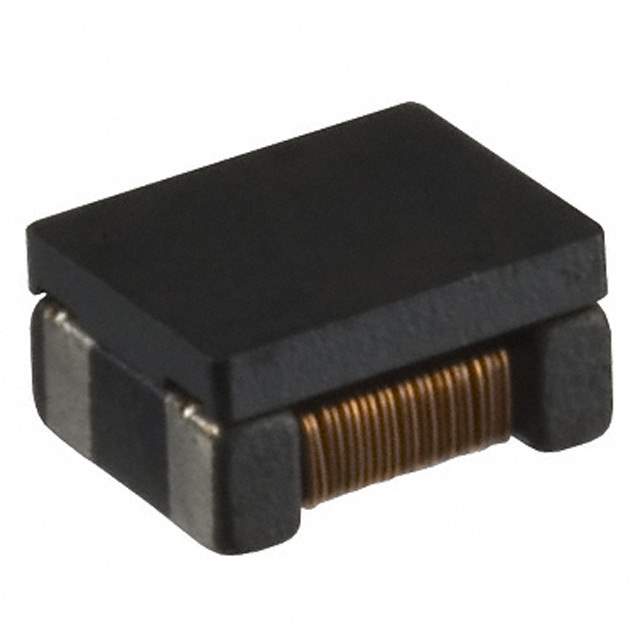

ACM2520-601-2P-T001 Real Image
Same model may have multiple batches, images only for reference.

ACM2520-601-2P-T001

Part No ACM2520-601-2P-T001
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 300MA 2LN 600 OHM SMD
Datasheet
ACM2520-601-2P-T001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 600 Ohm @ 100MHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 450 mOhm
Voltage Rating - DC 20V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.051" (1.30mm)
Dimension 1008 (2520 Metric), 4 PC Pad
Win Source Part Number 198482-ACM2520-601-2P-T001
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACM2520-601-2P-T001 CAD Model

Description

ACM2520-601-2P-T001

The ACM2520-601-2P-T001 is a cutting-edge electronic component designed to offer superior performance in electromagnetic interference (EMI) suppression. Its small form factor allows easy integration into compact electrical designs.

  • Applications/Projects:
    • Consumer electronics
    • Medical devices
    • Telecommunications equipment
    • Automotive electronics
    • Industrial control systems
  • Features and Benefits:
    • Highly efficient at EMI suppression
    • Compact size: 2.5mm x 2.0mm
    • RoHS compliant, ensuring environmental safety
    • Wide operating temperature range for versatility
    • Durable construction for long-lasting performance
  • Additional Details:
    • Compatible with automated assembly equipment
    • Ensures minimal loss of signal integrity
