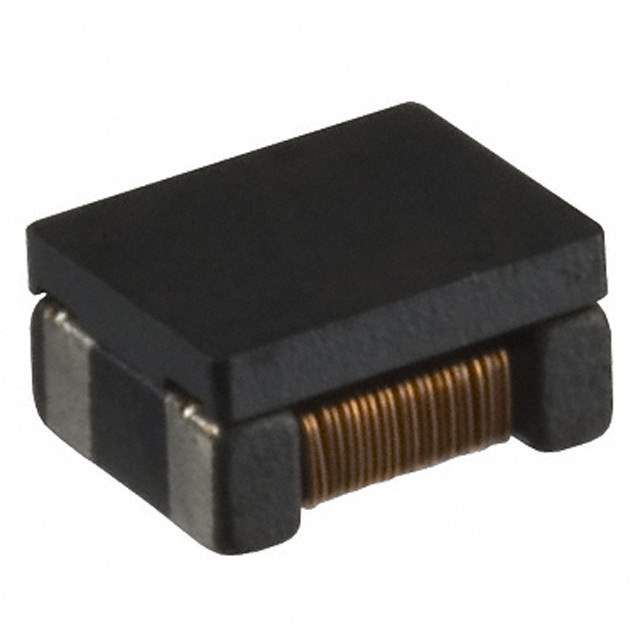

ACM2520-601-2P-T002 Real Image
Same model may have multiple batches, images only for reference.

ACM2520-601-2P-T002

Part No ACM2520-601-2P-T002
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 300MA 2LN 600 OHM SMD
Datasheet
ACM2520-601-2P-T002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 600 Ohm @ 100MHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 450 mOhm
Voltage Rating - DC 20V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.051" (1.30mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 007853-ACM2520-601-2P-T002
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACM2520-601-2P-T002 CAD Model

Description

ACM2520-601-2P-T002

The ACM2520-601-2P-T002 is engineered for high-efficiency EMI filtering, making it ideal for use in various electronic circuits. Its manufacture adheres to high standards, ensuring reliable operation even in demanding conditions.

  • Applications/Projects:
    • Smart home devices
    • Wearable technology
    • Networking hardware
  • Features and Benefits:
    • Excellent EMI filter characteristics
    • Space-saving design, easy to install
    • Able to operate in a wide temperature range
  • Additional Details:
    • High reliability and enhanced performance
    • Easy integration with other components
