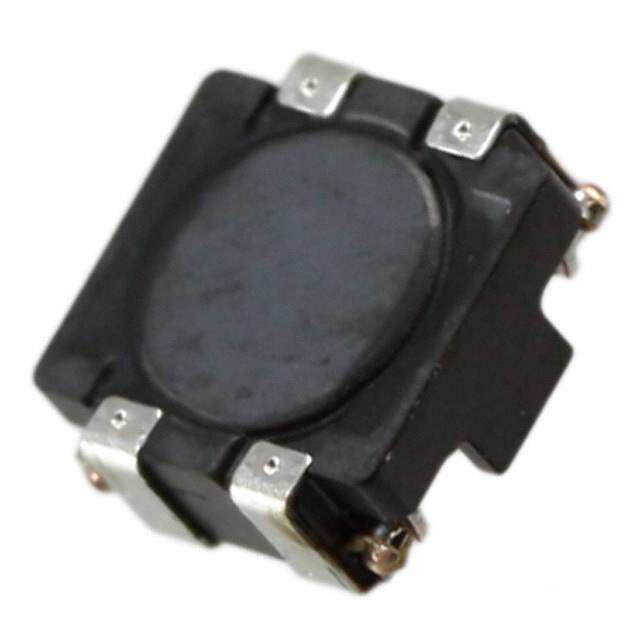

ACM4520-231-2P-T000 Real Image
Same model may have multiple batches, images only for reference.

ACM4520-231-2P-T000

Part No ACM4520-231-2P-T000
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 3A 2LN 230 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 230 Ohm @ 100MHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 50 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.079" (2.00mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 135256-ACM4520-231-2P-T000
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name ACM
Introduction Date June 30, 2000
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2019
Quantity per package 800
Ultra Librarian 3D Model Ultra Librarian ACM4520-231-2P-T000 CAD Model

Description

The ACM4520-231-2P-T000 is engineered for optimal functionality in signal integrity and noise suppression. Known for its superior performance, this component is a staple in demanding environments.

Features and Benefits

  • Enhanced signal clarity
  • High saturation current capacity
  • Temperature resilient design
  • Long operational lifespan

Applications and Projects

  • Wireless communication systems
  • Medical devices
  • Security systems
  • Networking equipment

Ideal for high-density electronics, the ACM4520-231-2P-T000 is a premium choice for engineers aiming for excellence in their projects.
