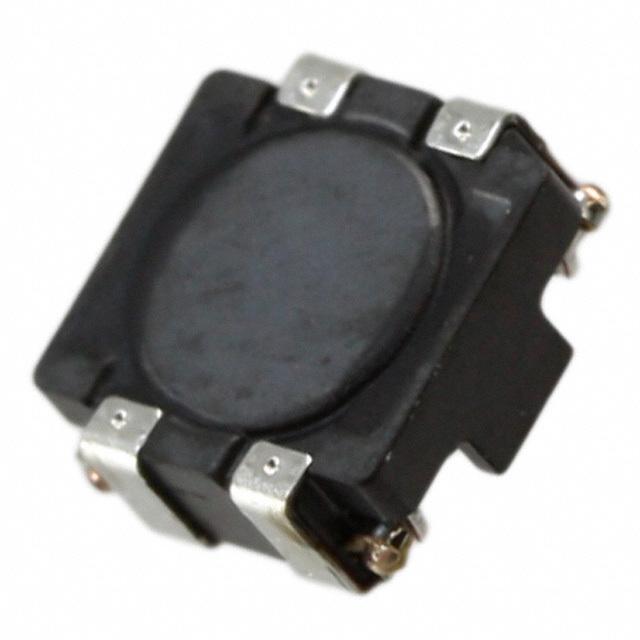

ACM4520-901-2P-T000

Part No ACM4520-901-2P-T000
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 2.3A 2LN 900 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 900 Ohm @ 100MHz
Current Rating (Max) 2.3A
DC Resistance (DCR) (Max) 60 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.079" (2.00mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 007857-ACM4520-901-2P-T000
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name ACM
Introduction Date July 04, 2001
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2019
Quantity per package 800
Ultra Librarian 3D Model Ultra Librarian ACM4520-901-2P-T000 CAD Model

Description

Product Overview
