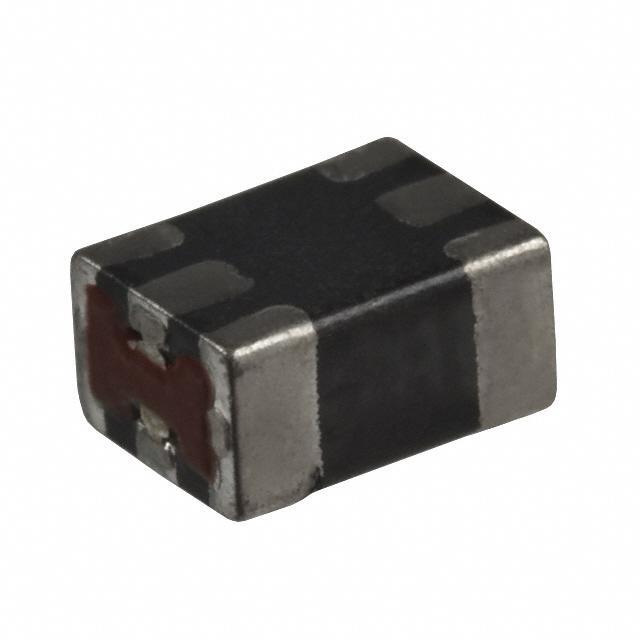

Same model may have multiple batches, images only for reference.
ACM4532-102-3P TDK Corporation
Same model may have multiple batches, images only for reference.

ACM4532-102-3P

Part No ACM4532-102-3P
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 200MA 3LN 1 KOHM SMD
Datasheet
ACM4532-102-3P Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Signal Line
Number of Lines 3
Impedance @ Frequency 1 kOhm @ 100MHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 600 mOhm
Voltage Rating - DC 20V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.091" (2.30mm)
Dimension 1812 (4532 Metric), 6 Lead
Win Source Part Number 093168-ACM4532-102-3P
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACM4532-102-3P CAD Model

Description

Product Overview

The ACM4532-102-3P stands out for its multi-functional capabilities and robust design. It is tailored for modern applications that require both versatility and high performance.

Features and Benefits

  • Advanced thermal management features.
  • Exceptional compatibility with high-speed data applications.
  • Designed to accommodate high-density electronic layouts.
  • Promotes longer lifespan of electronic systems.

Applications

  • Data communication systems
  • Advanced computing projects
  • Power electronics
  • Robotics and automation

Choose the ACM4532-102-3P for projects that require strong performance under demanding conditions.
