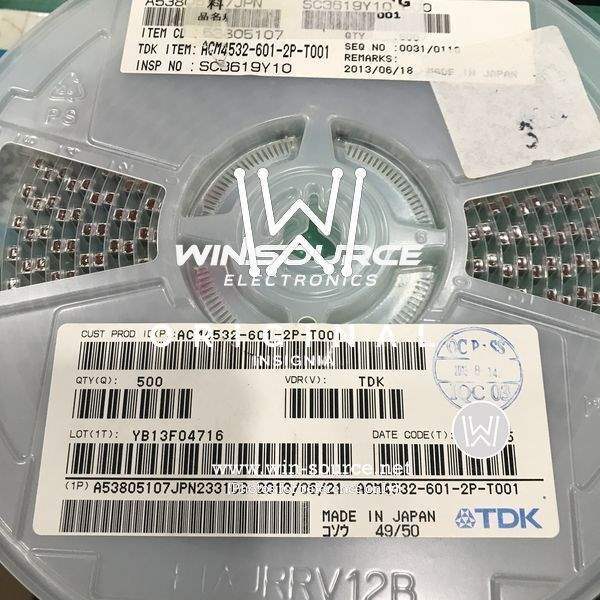

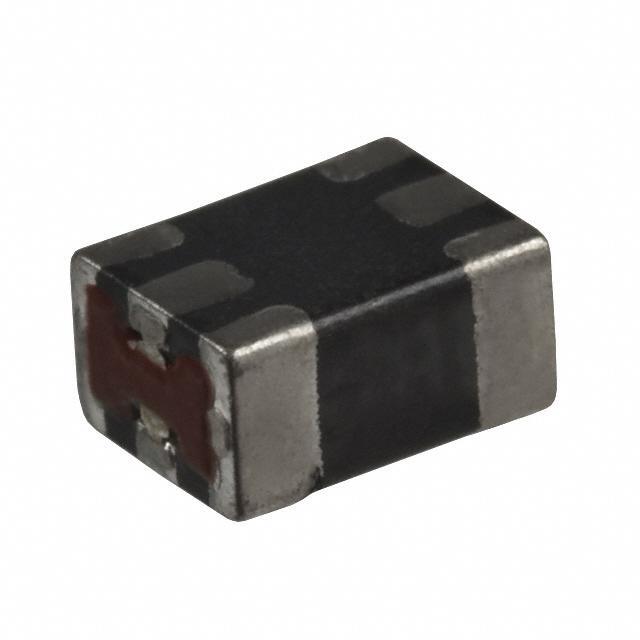

ACM4532-601-2P-T001

Part No ACM4532-601-2P-T001
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 1.5A 2LN 600 OHM SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 600 Ohm @ 100MHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 100 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.091" (2.30mm)
Dimension 1812 (4532 Metric), 6 Lead
Win Source Part Number 107371-ACM4532-601-2P-T001
Family Name ACM
Introduction Date July 04, 2001
ECCN EAR99
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ACM4532-601-2P-T001 CAD Model

Description

ACM4532-601-2P-T001

The ACM4532-601-2P-T001 presents a reliable solution for noise suppression challenges in modern electronic gadgets. Its high impedance and efficient filtering capabilities make it suitable for circuitry demanding strict EMI control.

  • Applications: Medical devices, telecommunications, computer peripherals.
  • Features: Optimal filtering performance, high impedance, compact footprint.
  • Benefits: Protects sensitive electronics, increases data transfer reliability, reduces interference.
  • Additional Details: This model is recognized for its high thermal stability and compliance with industry standards.
