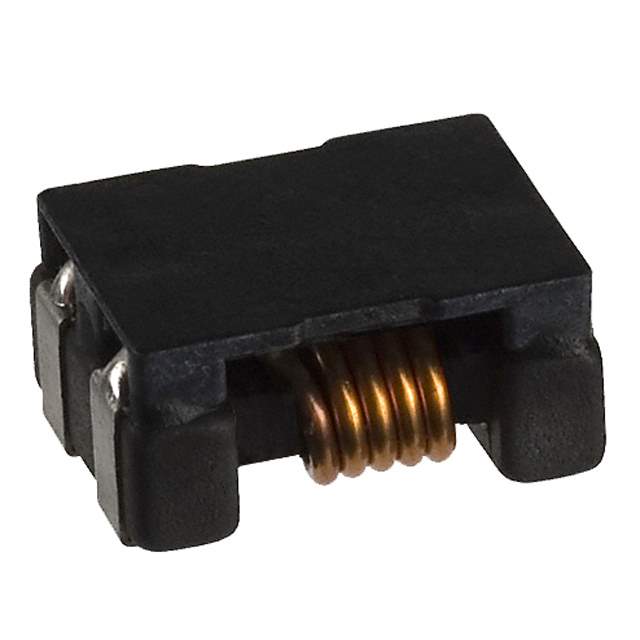

ACM7060-301-2PL-TL01

Part No ACM7060-301-2PL-TL01
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description Common Mode Chokes Dual 0.6uH 300Ohm 100MHz 5A 10mOhm DCR SMD T/R / CMC 5A 2LN 300 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 300 Ohm @ 100MHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 10 mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.138" (3.50mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 007859-ACM7060-301-2PL-TL01
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name ACM
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian ACM7060-301-2PL-TL01 CAD Model

Description

ACM7060-301-2PL-TL01 High-Performance Inductor

Featuring advanced magnetic materials, the ACM7060-301-2PL-TL01 offers increased performance for power electronics. Its optimized core design ensures maximum efficiency and durability.

  • Applications:
    • Switch-mode power supplies
    • Consumer electronics
    • Automotive power systems
  • Features & Benefits:
    • Optimized for high frequency applications
    • High saturation current capability
    • Reduced electromagnetic interference (EMI)
    • Long operational lifespan
  • Additional Details: The inductor's robust performance characteristics make it suitable for challenging industrial environments.
