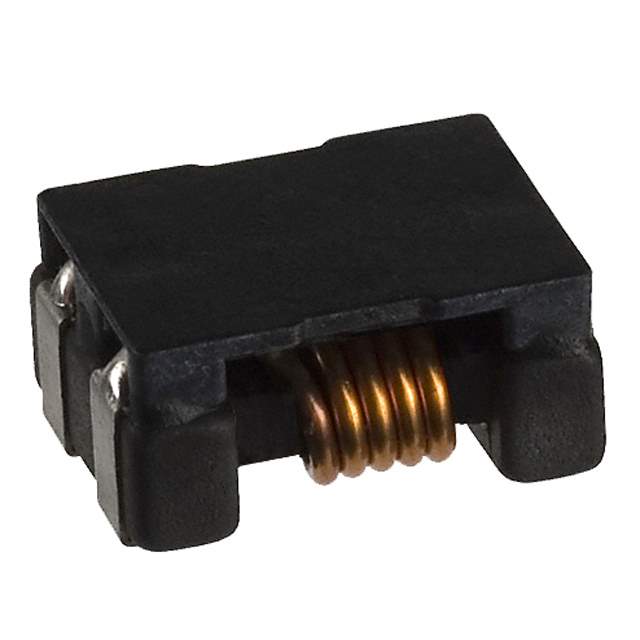

The ACM70V-701-2P is a common mode choke from TDK Corporation designed to suppress common mode noise in various electronic circuits. It is particularly effective in mitigating unwanted electromagnetic interference (EMI) in signal and power lines. This choke is characterized by its high impedance over a broad frequency range, providing superior noise filtering performance.

Applications

• USB lines
• HDMI lines
• LVDS lines
• Power supply lines
• Automotive electronics
• Industrial equipment
• Consumer electronics

Features

• Inductance: 700 uH (typical)
• Rated Voltage: 70 V DC
• Rated Current: 2 A
• DC Resistance: 0.15 Ohms (typical)
• Operating Temperature Range: -40°C to +85°C
• Package: SMD
• RoHS Compliant

Benefits

• Effective Noise Suppression: Provides excellent attenuation of common mode noise, improving signal integrity.
• High Impedance: Offers high impedance over a wide frequency range for optimal filtering.
• Compact Size: Space-saving SMD package allows for high-density board designs.
• Wide Voltage Range: Suitable for a variety of applications with different voltage requirements.
• RoHS Compliant: Environmentally friendly and complies with industry regulations.
• Improved EMI Performance: Reduces electromagnetic interference, ensuring compliance with regulatory standards.

Technical Specifications

The ACM70V-701-2P is constructed with high-quality ferrite core material for enhanced performance. Its compact size and SMD package enable easy integration into automated assembly processes. The choke's performance is optimized for suppressing noise in differential signaling applications. It is designed to withstand high voltage transients and surges. This component is crucial for ensuring compliance with EMC (Electromagnetic Compatibility) standards.
