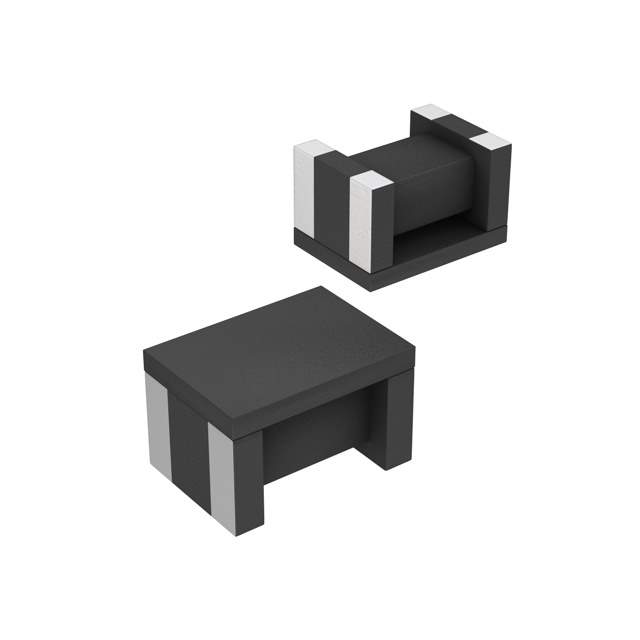

ACT45R-101-2P-TL001 Real Image
Same model may have multiple batches, images only for reference.

ACT45R-101-2P-TL001

Part No ACT45R-101-2P-TL001
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 100UH 200MA 2LN SMD AEC-Q200
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 5.5 kOhm @ 10MHz
Inductance @ Frequency 100μH @ 100kHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 1.5 Ohm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C to 150°C
Ratings AEC-Q200
Mounting SMD (SMT)
Height (Max) 0.118" (3.00mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 1011912-ACT45R-101-2P-TL001
Family Name ACT
Introduction Date October 15, 2010
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2022
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ACT45R-101-2P-TL001 CAD Model

Description

The TDK Corporation ACT45R-101-2P-TL001 is a signal line filter designed and manufactured by TDK Corporation.

  • Application: Signal Line Filter
  • Popularity: High
  • Supply and Demand Status: Limited
  • Dimension: 4 PC Pad
  • Mounting: Surface
  • Voltage Rating: 50V
  • Current Rating: 200mA
  • Inductance: 100μH @ 100kHz
  • DC Resistance: 1.5 Ohm
  • Impedance: 5.5 kOhm @ 10MHz
  • Temperature Range: -40°C to 150°C
  • Status: Active
