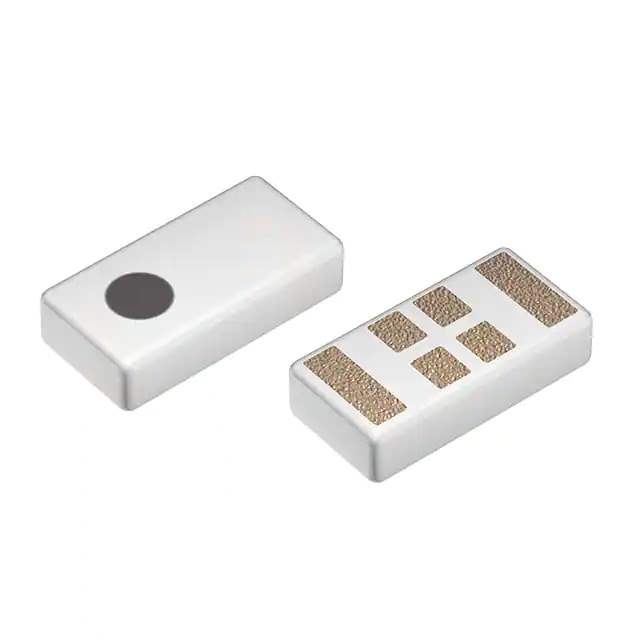

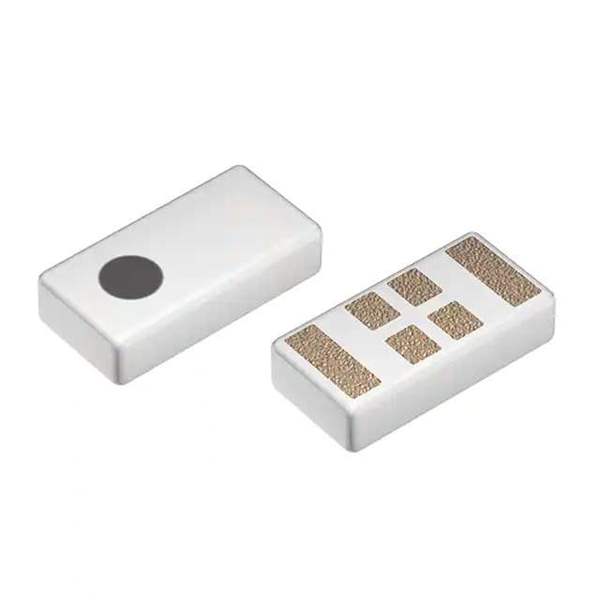

ANT162442DT-2001A2 Real Image
Same model may have multiple batches, images only for reference.

ANT162442DT-2001A2

Part No ANT162442DT-2001A2
Manufacturer TDK Corporation
Catalog RF Antennas
Description RF ANT 2.4GHZ/5.5GHZ CHIP SLD / 2.4GHz, 5.5GHz Chip RF Antenna 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz Solder Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr TDK Corporation
Package Tape & Reel
Product Status Active
Frequency Group UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band) 2.4GHz, 5.5GHz
Frequency Range 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz
Antenna Type Chip
Number of Bands 2
VSWR 1.5
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.016" (0.40mm)
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8529.10.9100
Win Source Part Number 861000-ANT162442DT-2001A2
Ultra Librarian 3D Model Ultra Librarian ANT162442DT-2001A2 CAD Model

Description

The ANT162442DT-2001A2 chip antenna is a high-performance component designed for wireless communication applications.

  • Manufacturer: TDK Corporation
  • Product: ANT162442DT-2001A2
  • Frequency Range: 2.4GHz to 2.48GHz and 5.15GHz to 5.85GHz
  • Size: 0.016" (0.40mm)
  • Mounting Type: Surface Mount
  • VSWR: 1.5
  • Package: Tape and Reel
  • Quantity per Package: 4,000 pcs
