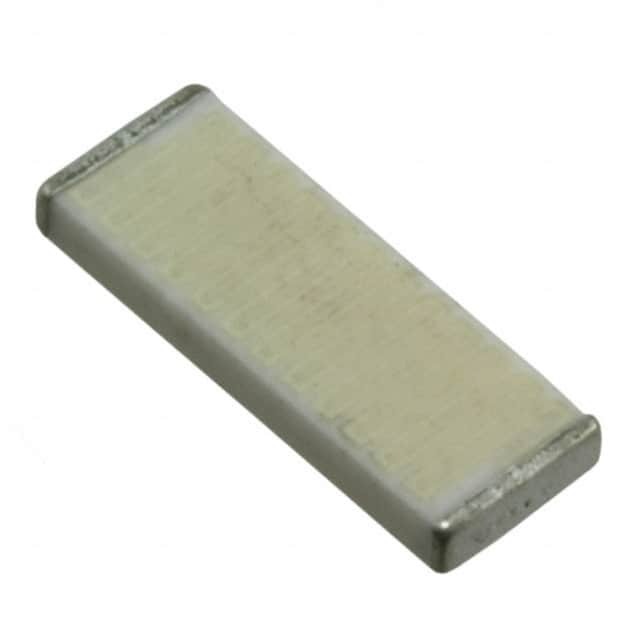

ANT8030-2R4-01A
Same model may have multiple batches, images only for reference.

ANT8030-2R4-01A

Part No ANT8030-2R4-01A
Manufacturer TDK Corporation
Catalog RF Antennas
Description RF ANT 2.4GHZ CHIP SOLDER SMD
Datasheet
ANT8030-2R4-01A Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr TDK Corporation
Package Tape & Reel
Product Status Obsolete
RF Family/Standard Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz ~ 2.5GHz
Antenna Type Chip
Number of Bands 1
VSWR 2
Return Loss -15dB
Gain 2dBi
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.039" (1.00mm)
Applications Bluetooth, WLAN
Standard Package 3,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8529.10.9100
Win Source Part Number 861007-ANT8030-2R4-01A
Ultra Librarian 3D Model Ultra Librarian ANT8030-2R4-01A CAD Model

Description

The Win Source Part Number 861007-ANT8030-2R4-01A is an RF Antenna suitable for Bluetooth and WLAN applications.

  • Manufacturer: Unknown
  • Product: 861007-ANT8030-2R4-01A
  • Type: RF Antenna
  • Applications: Bluetooth and WLAN
  • Frequency Range: 2.4GHz to 2.5GHz
  • Return Loss: -15dB
  • Gain: 2dBi
  • Mounting: Surface Mount
  • Height: 0.039" (1.00mm)
  • Termination: Solder
  • Package: Tape & Reel
  • Frequency Group: UHF (2GHz ~ 3GHz)
  • RF Standards: Bluetooth and WiFi
  • Standard Package: 3,000 pcs
