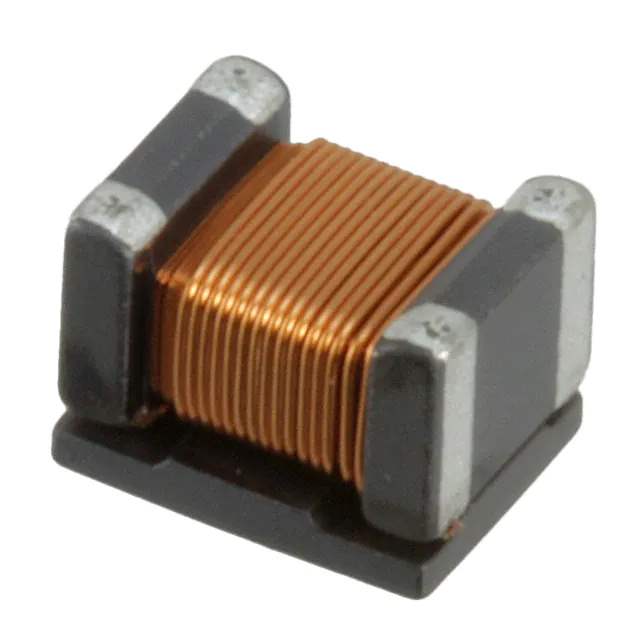

ATB322515-0110 Real Image
Same model may have multiple batches, images only for reference.

ATB322515-0110

Part No ATB322515-0110
Manufacturer TDK Corporation
Catalog Specialty Transformers
Description TRANSFORMERS
Datasheet
ATB322515-0110 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Specialty Transformers
Mfr TDK Corporation
Series ATB3225
Package Tape & Reel
Product Status Not For New Designs
Inductance 7 µH
For Use With/Related Products Xenon Flash
Mounting Type Surface Mount
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.061" (1.55mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 862296-ATB322515-0110
Ultra Librarian 3D Model Ultra Librarian ATB322515-0110 CAD Model

Description

The ATB322515-0110 is a specialty transformer from TDK Corporation.

  • Series: ATB3225
  • Category: Transformers - Specialty Transformers
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Application: Xenon Flash products
  • Size/Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Inductance: 7 μH
  • Height: 0.061" (1.55mm)
  • Status: Not recommended for new designs
  • HTSUS: 8504.31.2000
