Same model may have multiple batches, images only for reference.

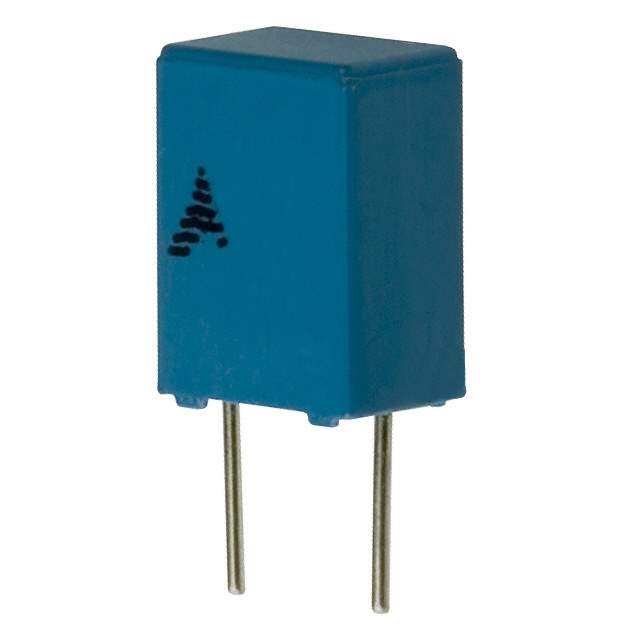

B32529C684K289 Real Image
Same model may have multiple batches, images only for reference.

B32529C684K289

Part No B32529C684K289
Manufacturer TDK Corporation
Catalog Film Capacitors
Description Cap Film 0.047uF 63V PET 5% (7.2 X 2.5 X 6.5mm) Radial 5mm 125°C Ammo Pack
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 680 nF
Mounting SMD (SMT)
Case / Package Radial
Depth 4.5 mm
Dielectric PET
Dielectric Material PET
Height - Seated (Max) 9.4996 mm
Lead Diameter 500 µm
Lead Pitch 5 mm
Length 7.2898 mm
Maximum Operating Temperature 125 °C
Min Operating Temperature -55 °C
Mount Through Hole
Packaging Cut Tape (CT)
Radiation Hardening No
RoHS Compliant
Termination Radial
Tolerance 10 %
Voltage Rating (AC) 40 V
Voltage Rating (DC) 63 V
Width 4.4958 mm
Win Source Part Number 987640-B32529C684K289
Categories Film Capacitors
Manufacturer TDK Corporation
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian B32529C684K289 CAD Model

Description

The B32529C684K289 is a film capacitor manufactured by TDK Corporation. This device is designed for use in film capacitors.

  • Package Type: Radial
  • Termination: Radial
  • Maximum Voltage Rating (AC): 40 V
  • Maximum Voltage Rating (DC): 63 V
  • Capacitance: 680 nF
  • Tolerance: 10%
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 125°C
  • Length: 7.2898 mm
  • Width: 4.4958 mm
  • Height: 9.4996 mm
