Same model may have multiple batches, images only for reference.

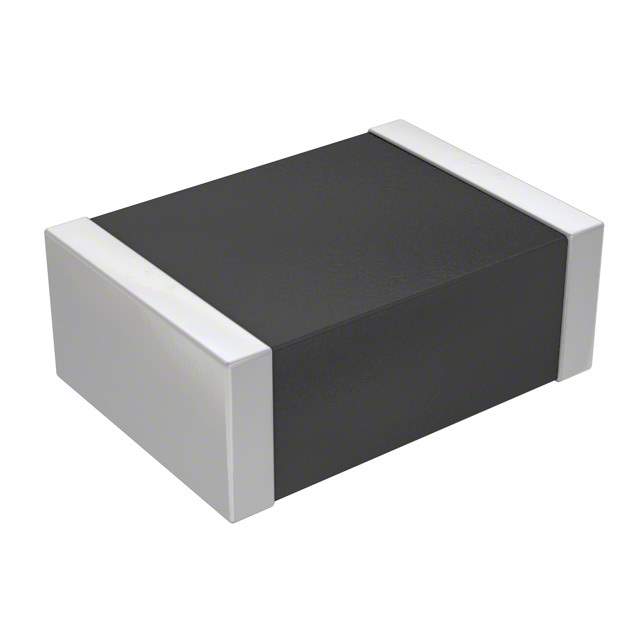

B72580V170K62 Real Image
Same model may have multiple batches, images only for reference.

B72580V170K62

Part No B72580V170K62
Manufacturer TDK Corporation
Catalog TVS - Varistors, MOVs
Description Var MLV 14VAC/16VDC 800A 22V 1812 SMD Blister
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 4 nF
Case / Package 1812
Case Code (Imperial) 1812
Case Code (Metric) 4532
Clamping Current 5 A
Clamping Voltage 44 V
Depth 3.2 mm
Energy 2.7 J
Height 2.5 mm
Lead Free Lead Free
Length 4.5 mm
Material Metal
Max Operating Temperature 125 °C
Max Surge Current 800 A
Max Voltage Rating (AC) 17 V
Max Voltage Rating (DC) 22 V
Min Operating Temperature -55 °C
Mount Surface Mount
Packaging Tape & Reel (TR)
Radiation Hardening No
RoHS Compliant
Termination SMD/SMT
Tolerance 10 %
Varistor Voltage 27 V
Voltage Rating (AC) 17 V
Voltage Rating (DC) 22 V
Voltage Tolerance 10 %
Width 3.2 mm
Win Source Part Number 1177211-B72580V170K62
Categories TVS - Varistors,MOVs
Manufacturer TDK Corporation
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B72580V170K62 CAD Model

Description

The TDK Corporation B72580V170K62 TVS-Varistors,MOVs part has a Win Source Part Number of 1177211-B72580V170K62.

  • Mounting Type: surface mount (SMD/SMT)
  • Case/Package Size: 1812
  • Capacitance: 4 nF
  • Capacitance Tolerance: 10%
  • Clamping Voltage: 44 V
  • Clamping Current: 5 A
  • Varistor Voltage: 27 V
  • Energy: 2.7 J
  • Max Surge Current: 800 A
  • Voltage Rating (AC): 17 V
  • Max Voltage Rating (AC): 17 V
  • Voltage Rating (DC): 22 V
  • Max Voltage Rating (DC): 22 V
  • Height: 2.5 mm
  • Width: 3.2 mm
  • Length: 4.5 mm
  • Lead-Free: yes
  • RoHS Compliant: yes
