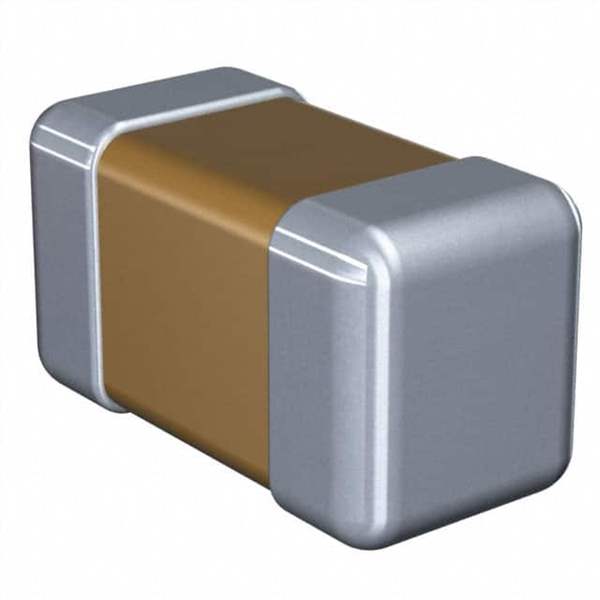

The C0603X5R1A104K030BC is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. This capacitor is designed for general-purpose applications where a stable capacitance and small size are required.

Applications

• Bypass capacitors in digital circuits
• Decoupling capacitors in power supplies
• Filtering in signal lines
• DC-DC converters
• Consumer electronics

Features

• Capacitance: 0.1µF (Microfarads)
• Voltage: 10V (Volts)
• Case Size: 0603 (1608 Metric)
• Dielectric: X5R
• Tolerance: ±10%
• Termination: Nickel Barrier with Tin Plating
• Operating Temperature Range: -55°C to +85°C

Benefits

• Small Size: The 0603 package allows for high-density mounting on circuit boards.
• Stable Capacitance: The X5R dielectric provides a relatively stable capacitance over temperature and voltage variations.
• Reliable Performance: TDK is a well-known manufacturer, ensuring consistent quality and performance.
• Low ESR: Contributes to low power loss and efficient circuit operation.
• RoHS Compliant: Meets environmental regulations for lead-free products.
• Cost-Effective: Provides a good balance of performance and cost for general-purpose applications.

Additional Details

The X5R dielectric offers a capacitance variation of ±15% within the operating temperature range of -55°C to +85°C. The nickel barrier termination provides excellent solderability and prevents silver migration. This capacitor is designed for surface mount technology (SMT) and is suitable for reflow soldering. Part number C0603X5R1A104K030BC specifies dimensions, capacitance value, rated voltage, and tolerance.
