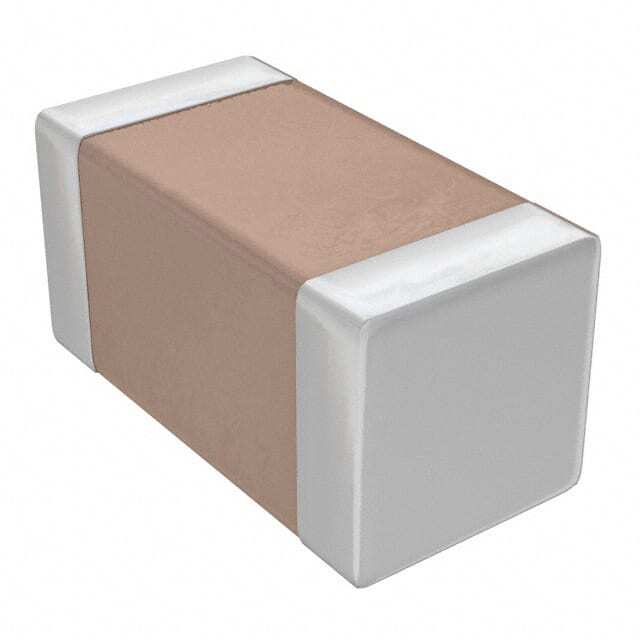

Same model may have multiple batches, images only for reference.
C1005C0G1H821J050BA TDK Corporation
Same model may have multiple batches, images only for reference.

C1005C0G1H821J050BA

Part No C1005C0G1H821J050BA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr TDK Corporation
Series C
Package Tape & Reel
Product Status Not For New Designs
Capacitance 820 pF
Tolerance ±5%
Voltage - Rated 50V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features Low ESL
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 0402 (1005 Metric)
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Thickness (Max) 0.022" (0.55mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1315796-C1005C0G1H821J050BA
Ultra Librarian 3D Model Ultra Librarian C1005C0G1H821J050BA CAD Model

Description

The C1005C0G1H821J050BA is a ceramic capacitor manufactured by TDK Corporation.

  • Manufacturer: TDK Corporation
  • Application: General Purpose
  • Capacitance: 820pF
  • Voltage Rating: 50V
  • Tolerance: ±5%
  • Temperature Coefficient: C0G, NP0
  • Package: 0402 (1005 Metric)
  • Feature: Low ESL
  • Operating Temperature: -55°C to 125°C
  • Lifecycle Status: Not For New Designs
