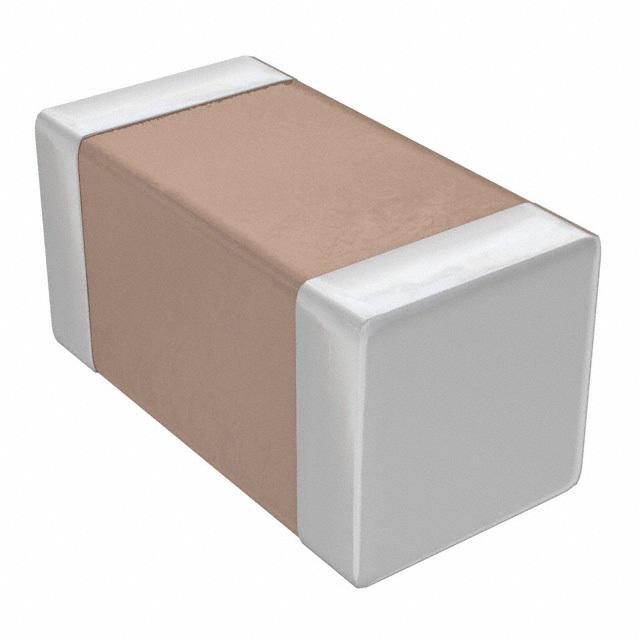

The C1005X5R1V105K050BC is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. This capacitor is designed for a variety of applications requiring stable and reliable performance, particularly in consumer electronics, mobile devices, and industrial equipment. It's part of TDK's C series of MLCCs, known for their quality and dependability.

Applications

• Mobile Phones: Used for decoupling and filtering in power supplies and signal lines.
• Consumer Electronics: Employed in devices such as TVs, audio players, and digital cameras.
• Industrial Equipment: Utilized in control systems, sensors, and power supplies.
• Automotive Electronics: Found in various automotive applications for signal conditioning and noise reduction.
• Power Supplies: Used for input and output filtering to reduce ripple and noise.

Features

• High Capacitance: 1.0 µF capacitance value for effective energy storage and filtering.
• X5R Dielectric: Provides stable capacitance over a wide temperature range.
• Compact Size: 0402 (1005 Metric) case size for space-constrained designs.
• Voltage Rating: Rated for 35V, suitable for low to medium voltage applications.
• RoHS Compliant: Meets environmental standards for hazardous substance control.

Benefits

• Stable Performance: X5R dielectric ensures minimal capacitance change over temperature and voltage.
• Effective Decoupling: Provides effective decoupling for integrated circuits and other sensitive components.
• Space Saving: Small size allows for high-density circuit designs.
• Long Lifespan: High-quality materials and construction ensure long-term reliability.
• Versatile Application: Suitable for a wide range of applications due to its stable performance and compact size.

Additional Details

The C1005X5R1V105K050BC capacitor utilizes an X5R dielectric material, which exhibits stable capacitance over a temperature range of -55°C to +85°C. This makes it suitable for applications where temperature stability is important. The capacitor’s 0402 case size (1.0mm x 0.5mm) allows for high-density mounting on printed circuit boards (PCBs). The termination finish is typically nickel barrier with tin plating, ensuring excellent solderability and resistance to oxidation. The capacitor is designed to withstand reflow soldering processes. It is part of TDK's comprehensive range of MLCCs, known for their quality and reliability. The 1.0 µF capacitance and 35V voltage rating make it a versatile component for numerous electronic applications.
