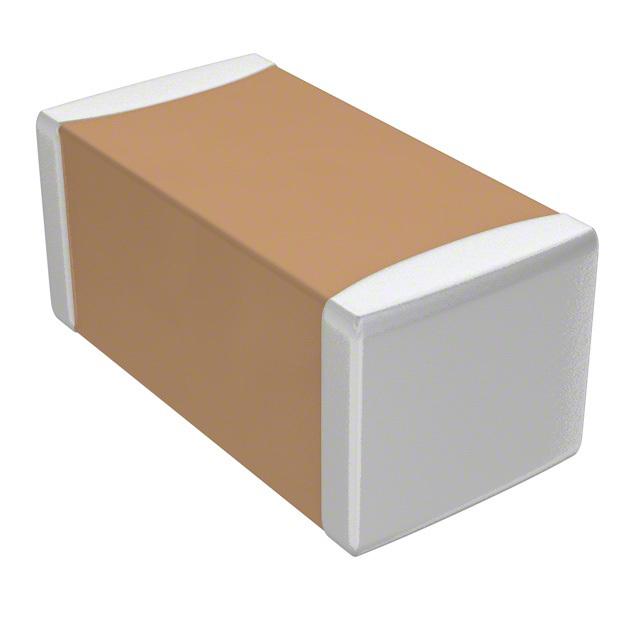

The C3216X5R0J226M160AA is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. This capacitor is designed for general-purpose applications and is commonly used in various electronic circuits for functions such as decoupling, bypassing, and filtering.

Applications

• General electronic circuits
• Decoupling circuits for integrated circuits (ICs)
• Bypass capacitors for noise reduction
• Filtering circuits for signal conditioning
• Power supply circuits

Features

• High capacitance value: 22µF, suitable for applications requiring significant capacitance.
• Compact size: 3216 (1206) case size, making it suitable for space-constrained applications.
• X5R dielectric: Offers stable performance over a wide temperature range (-55°C to +85°C).
• Voltage rating: 6.3V DC, appropriate for low-voltage circuits.
• Multilayer ceramic construction: Provides high reliability and long life.
• RoHS compliant: Meets environmental standards for hazardous substance restrictions.

Benefits

• Effective decoupling: Provides a stable voltage supply by suppressing voltage fluctuations and noise.
• Noise reduction: Filters out unwanted noise in electronic circuits, improving signal quality.
• Space saving: Its small size enables high-density circuit designs.
• Stable performance: X5R dielectric ensures consistent performance across a broad temperature range.
• Long lifespan: Ceramic construction ensures high reliability and extended operational life.

Additional Details

The C3216X5R0J226M160AA capacitor has a case size of 3.2mm x 1.6mm (1206). It features a capacitance tolerance of ±20%. This capacitor is ideal for use in various electronic devices where stable performance and compact size are crucial. It's commonly used in consumer electronics, industrial equipment, and automotive applications for decoupling, bypassing, and filtering purposes. The X5R dielectric ensures the capacitance value remains relatively stable across its operating temperature range, making it suitable for demanding environments.
