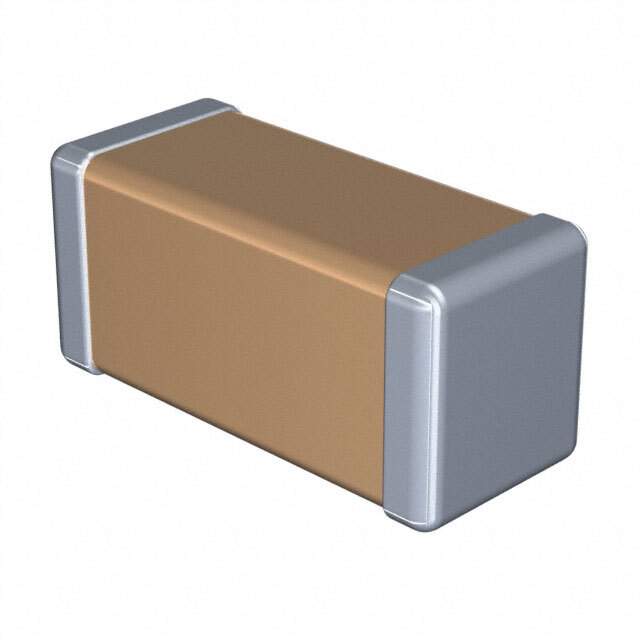

C4520X7R3D102KT000N Real Image
Same model may have multiple batches, images only for reference.

C4520X7R3D102KT000N

Part No C4520X7R3D102KT000N
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 1000PF 2KV X7R 1808
Datasheet
C4520X7R3D102KT000N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Capacitance 1000pF
Tolerance ±10%
Voltage Rating 2000V (2kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C to 125°C
Features High Voltage
Applications General Purpose
Mounting Surface Mount, MLCC
Dimension 0.177" L x 0.079" W (4.50mm x 2.00mm)
Thickness (Max) 0.059" (1.50mm)
Win Source Part Number 202113-C4520X7R3D102KT000N
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian C4520X7R3D102KT000N CAD Model

Description

Product Description

The C4520X7R3D102KT000N is designed for high-efficiency applications with its X7R dielectric material, providing an excellent balance between performance and cost for mid-voltage applications.

Features and Benefits

  • Capacitance: 1000 pF
  • Voltage Rating: 200V
  • Temperature Coefficient: X7R
  • Versatile utility in diverse circuit designs
  • Durable construction for extended lifecycle

Applications

  • Switching power supplies
  • Telecommunications
  • Data acquisition systems
  • Power conditioning

Additional Details

This capacitor can handle significant variations in voltage, making it highly reliable for industrial and commercial electronic environments.
