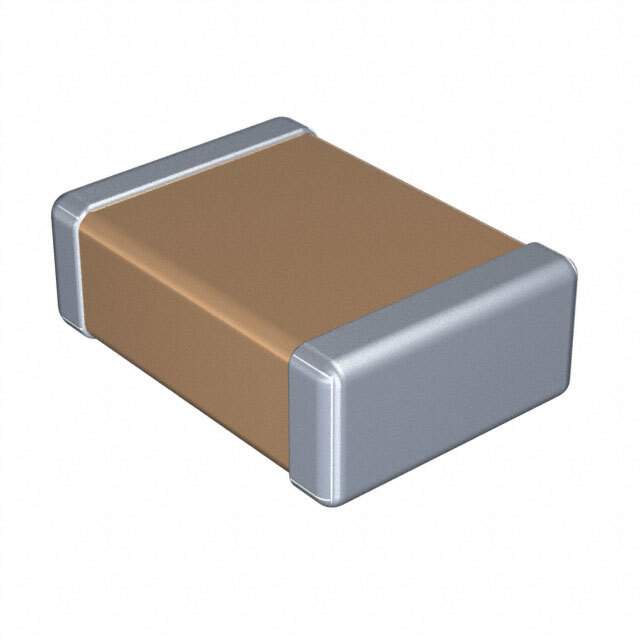

The C4532C0G2E223JT000N is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. MLCCs are essential passive components in electronic circuits, offering filtering, decoupling, and energy storage capabilities. This particular capacitor is designed for surface mount technology (SMT) and boasts a C0G dielectric, known for its exceptional stability. The part number encodes vital information about the capacitor's size, temperature characteristics, capacitance, and voltage rating.

Applications:

• Decoupling Capacitors: Used to reduce noise on power supply lines in digital and analog circuits.
• Filter Circuits: Employed in filters to remove unwanted frequencies or noise.
• Timing Applications: Used in timing circuits such as oscillators and timers, where stability is crucial.
• High-Frequency Circuits: Suited for use in RF and microwave circuits due to their low ESR and ESL.
• General-Purpose Applications: Used in a broad range of electronic devices for various functions.

Features:

• Multilayer Ceramic Construction: Provides high capacitance within a compact form factor.
• C0G (NP0) Dielectric: Offers outstanding capacitance stability with respect to temperature, voltage, and frequency.
• Surface Mount Technology (SMT): Suitable for automated assembly processes.
• High Insulation Resistance: Minimizes leakage current, ensuring efficient operation.
• Non-Polarized: Simplifies circuit design as polarity is not a concern.

Benefits:

• Exceptional Stability: Ensures consistent performance across a wide range of operating conditions.
• Miniature Size: Facilitates high-density circuit board layouts.
• High Reliability: Provides long-term dependable operation in demanding environments.
• Low Equivalent Series Resistance (ESR): Reduces power dissipation and improves circuit efficiency, especially at high frequencies.
• Cost-Effective: Delivers a cost-efficient solution for numerous capacitor applications.

Additional Details:

The C4532 within the part number indicates the capacitor's dimensions (4.5mm x 3.2mm). The C0G dielectric signifies a Class 1 ceramic capacitor with a temperature coefficient close to zero, ideal for critical timing and filtering circuits. The 2E signifies the voltage rating, determined by consulting the TDK datasheet. The 223J represents a capacitance value of 22nF (22 x 10^3 pF) with a tolerance of ±5%. The T000N portion provides packaging and additional characteristic specifications, which can be referenced in TDK's datasheet. These capacitors find extensive use in applications needing stable and precise capacitance values, such as communication equipment and precision instrumentation. Implementing proper soldering techniques is essential for reliable SMT assembly. Given its stability and reliability, this capacitor is ideally suited for demanding and sensitive applications.
