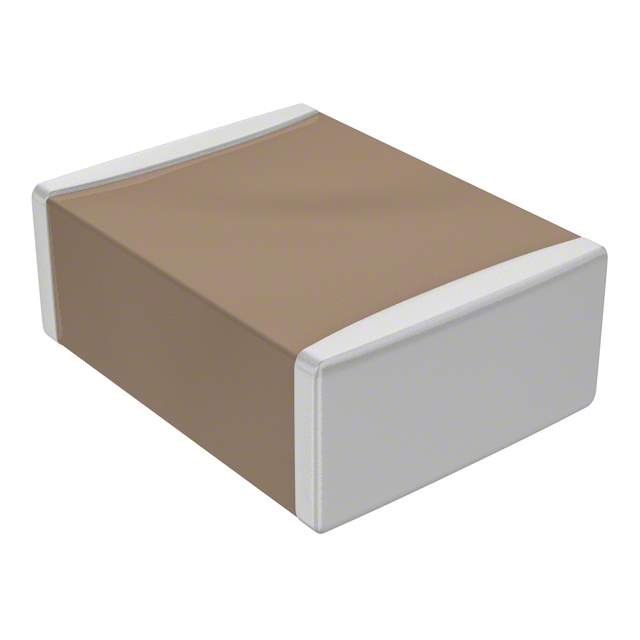

The C5750X7R2A225MT0L0U is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. It features an X7R dielectric, indicating that its capacitance varies within ±15% over a temperature range of -55°C to +125°C. MLCCs are widely used in electronic devices due to their small size, high reliability, and relatively stable performance.

Applications

• Bypass Capacitors: Used to suppress noise in power supplies and signal lines.
• Smoothing Capacitors: Used to reduce ripple voltage in DC power supplies.
• Filtering: Used in low-pass, high-pass, and band-pass filters to remove unwanted frequencies.
• Timing Circuits: Suitable for less critical timing applications where capacitance variation with temperature is acceptable.
• General-Purpose Coupling: For coupling signals between different stages of electronic circuits.

Features

• X7R Dielectric: Offers a good balance of capacitance stability, voltage rating, and size.
• Multilayer Construction: Provides high capacitance in a small form factor.
• Surface Mount Technology (SMT): Designed for automated assembly on printed circuit boards.
• RoHS Compliant: Meets the requirements of the Restriction of Hazardous Substances directive.

Benefits

• Effective Noise Suppression: Reduces unwanted noise and improves signal integrity.
• Stable Performance: Maintains a relatively stable capacitance over a wide temperature range.
• Compact Size: Allows for high-density circuit board designs.
• Easy Assembly: Facilitates efficient and cost-effective manufacturing.
• Environmentally Friendly: Complies with environmental regulations.

Additional Details

The C5750X7R2A225MT0L0U's specific characteristics, such as capacitance value, voltage rating, tolerance, and temperature coefficient, should be verified by consulting the manufacturer's datasheet. Its multilayer construction enhances volumetric efficiency. The X7R dielectric makes it suitable for applications where moderate capacitance stability is required.
