Same model may have multiple batches, images only for reference.

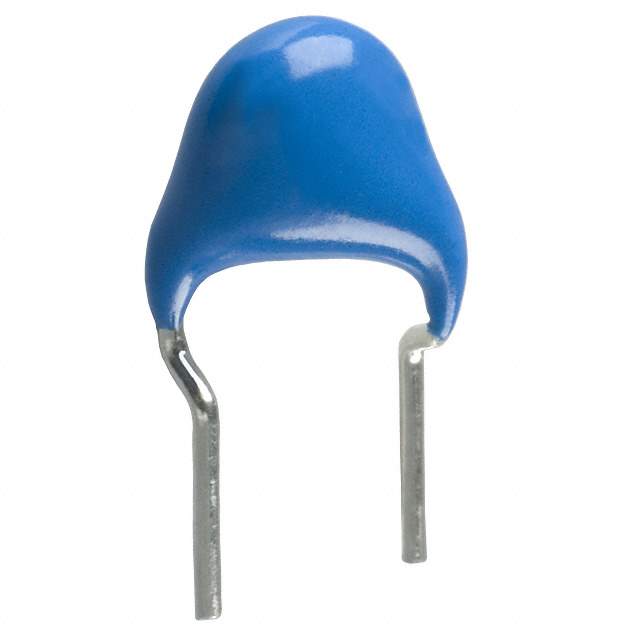

CC45SL3AD680JYNNA Real Image
Same model may have multiple batches, images only for reference.

CC45SL3AD680JYNNA

Part No CC45SL3AD680JYNNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 68PF 1KV SL RADIAL
Datasheet
CC45SL3AD680JYNNA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Series CC45
Packaging Bulk
Capacitance 68pF
Tolerance ±5%
Voltage Rating DC 1000V (1kV)
Temperature Coefficient SL
Operating Temperature Range -25°C ~ 125°C
Features High Voltage, Low Dissipation Factor
Applications General
Mounting Style Through Hole
Package Radial, Disc
Dimension 0.217" Dia (5.50mm)
Height - Seated (Maximum) 0.374" (9.50mm)
Lead Spacing 0.197" (5.00mm)
Lead Style Straight
Win Source Part Number 767260-CC45SL3AD680JYNNA
Popularity Medium
Supply and Demand Status Limited
Family Name CC45
Introduction Date August 28, 2000
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CC45SL3AD680JYNNA CAD Model

Description

The TDK Corporation CC45SL3AD680JYNNA is a high voltage, low dissipation factor capacitor that is suitable for general applications.

  • Capacitance: 68pF
  • Tolerance: ±5%
  • Temperature Coefficient: SL
  • Voltage Rating DC: 1000V (1kV)
  • Package: Radial, Disc
  • Lead Spacing: 0.197" (5.00mm)
  • Lead Style: Straight
  • Dimension: 0.217" Dia (5.50mm) x 0.374" (9.50mm) Height (seated)
  • Alternative Parts: DEA1X3A680JC1B, DEA1X3A680JD1B, DEA1X3A680JP2A
  • EOL Date: 2026 (estimated)
  • Halogen-Free: Compliant
