Same model may have multiple batches, images only for reference.

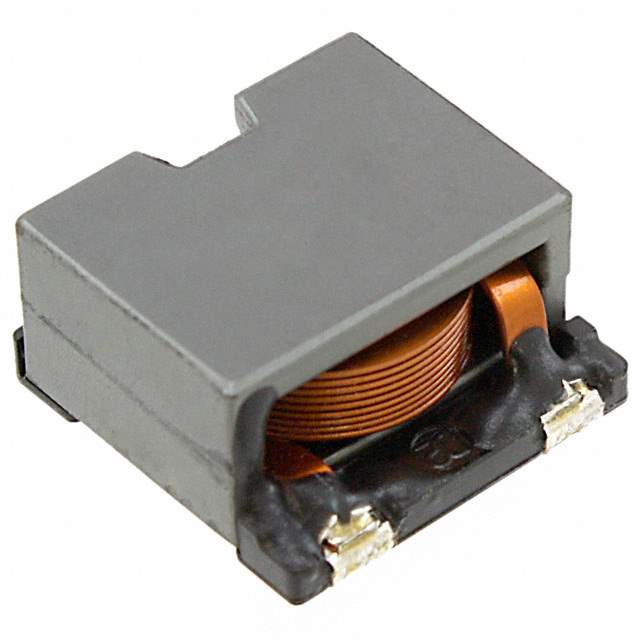

CDEP147NP-120MC-125 Real Image
Same model may have multiple batches, images only for reference.

CDEP147NP-120MC-125

Part No CDEP147NP-120MC-125
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 12UH 8.5A 13.31 MOHM
Datasheet
CDEP147NP-120MC-125 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 12μH
Tolerance ±20%
Current Rating 8.5A
Current - Saturation 8A
DC Resistance (DCR) 13.31 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.315" (8.00mm)
Win Source Part Number 013039-CDEP147NP-120MC-125
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDEP147NP-120MC-125 CAD Model

Description

Description

The CDEP147NP-120MC-125 inductor is crafted for applications where space and efficiency are critical. Its durable construction and reliable performance make it an excellent choice for high-density circuit designs.

Features and Benefits

  • Inductance: 12.0 μH for substantial energy storage.
  • Currents Up to 12.5 A: Ensures stable operation across applications.
  • Compact Profile: Ideal for high-precision setups.
  • High Reliability: Built to withstand rigorous conditions.

Applications

  • Embedded systems
  • Consumer electronics
  • Home automation devices
  • Instrumentation equipment
