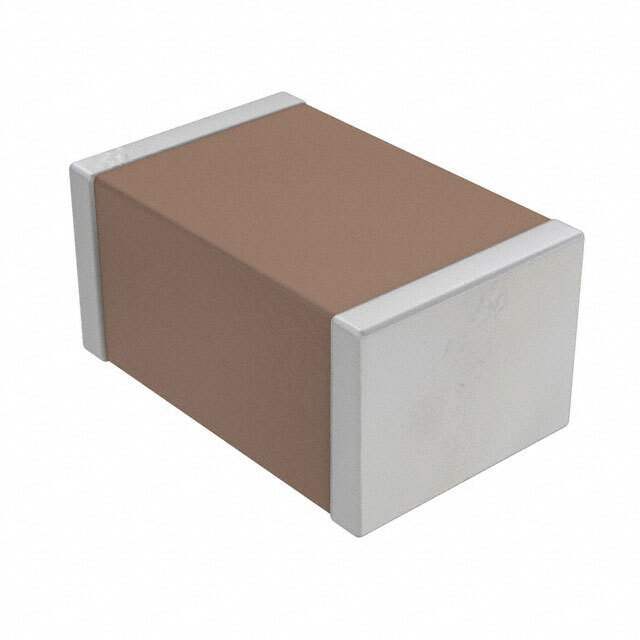

CGA5H3NP02E103J115AA

Part No CGA5H3NP02E103J115AA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 10000PF 250V NP0 1206
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Category Capacitors Ceramic Capacitors
Part Status Active
Capacitance 10000 pF
Tolerance ±5%
Temperature Coefficient C0G, NP0
Operating Temperature -55°C ~ 150°C
Features High Temperature
Applications Automotive
Package / Case 1206 (3216 Metric)
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Thickness (Max) 0.051" (1.30mm)
Win Source Part Number WS1309033-CGA5H3NP02E103J115AA
Ultra Librarian 3D Model Ultra Librarian CGA5H3NP02E103J115AA CAD Model

Description

10000 pF ±5% 250V Ceramic Capacitor C0G, NP0 1206 (3216 Metric)
