Same model may have multiple batches, images only for reference.

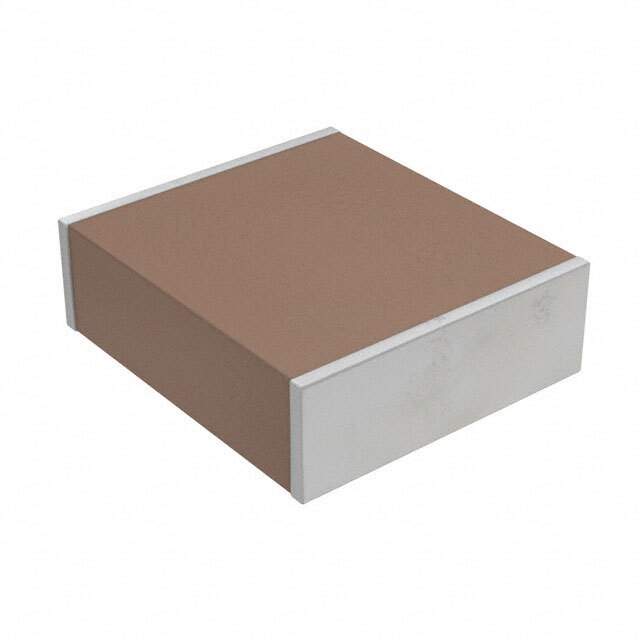

CGA9M4X7T2W684K200KA Real Image
Same model may have multiple batches, images only for reference.

CGA9M4X7T2W684K200KA

Part No CGA9M4X7T2W684K200KA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description Automotive Grade ( Mid Voltage (100 to 630V) )
Datasheet
CGA9M4X7T2W684K200KA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Series CGA
Packaging Reel - TR
Capacitance 0.68μF
Tolerance ±10%
Voltage Rating DC 450V
Temperature Coefficient X7T
Operating Temperature Range -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Mounting Surface Mount, MLCC
Package 2220 (5750 Metric)
Size 0.224" L x 0.197" W (5.70mm x 5.00mm)
Thickness (Maximum) 0.079" (2.00mm)
Manufacturer Homepage www.tdk.com
Win Source Part Number 722951-CGA9M4X7T2W684K200KA
Popularity Medium
Supply and Demand Status Limited
Quantity per package 500
Family Name CGA9
Introduction Date December 21, 2012
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CGA9M4X7T2W684K200KA CAD Model

Description

The TDK Corporation CGA series capacitors are designed for automotive applications.

  • Series: CGA
  • Capacitance: 0.68μF
  • Tolerance: ±10%
  • Voltage Rating: 450V DC
  • Temperature Coefficient: X7T
  • Operating Temperature: -55°C to 125°C
  • Package Size: 2220 (5750 Metric)
  • AEC-Q200 Rated: Yes
  • Mounting Type: Surface Mount
  • Packaging: Reel - TR
  • Quantity: 500
