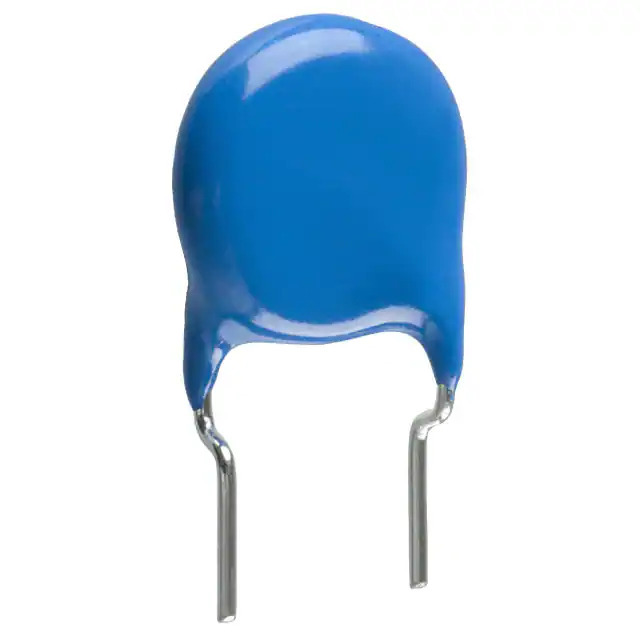

Same model may have multiple batches, images only for reference.
CK45-B3DD102KYVNA TDK Corporation
Same model may have multiple batches, images only for reference.

CK45-B3DD102KYVNA

Part No CK45-B3DD102KYVNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 1000PF 2KV RADIAL / 1000 pF ±10% 2000V (2kV) Ceramic Capacitor B Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CK45
Product Status Active
Capacitance 1000 pF
Tolerance ±10%
Voltage - Rated 2000V (2kV)
Temperature Coefficient B
Temperature Range - Operating -25°C ~ 105°C
Features High Voltage
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.295" Dia (7.50mm)
Height - Seated (Max) 0.453" (11.50mm)
Thickness (Max) -
Lead Spacing 0.197" (5.00mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1359916-CK45-B3DD102KYVNA
Ultra Librarian 3D Model Ultra Librarian CK45-B3DD102KYVNA CAD Model

Description

The CK45-B3DD102KYVNA is a high voltage ceramic capacitor manufactured by TDK Corporation. It is part of the CK45 series and comes in a radial, disc package.

  • Capacitance: 1000 pF
  • Voltage - Rated: 2000V (2kV)
  • Applications: General Purpose
  • Operating Temperature: -25°C ~ 105°C
  • Tolerance: ±10%
  • Size / Dimension: 0.295" Dia (7.50mm)
  • Height - Seated (Max): 0.453" (11.50mm)
  • Mounting Type: Through Hole
  • Lead Spacing: 0.197" (5.00mm)
  • Lead Style: Formed Leads
  • Series: CK45
  • REACH Compliance: Yes
  • ECCN: EAR99
