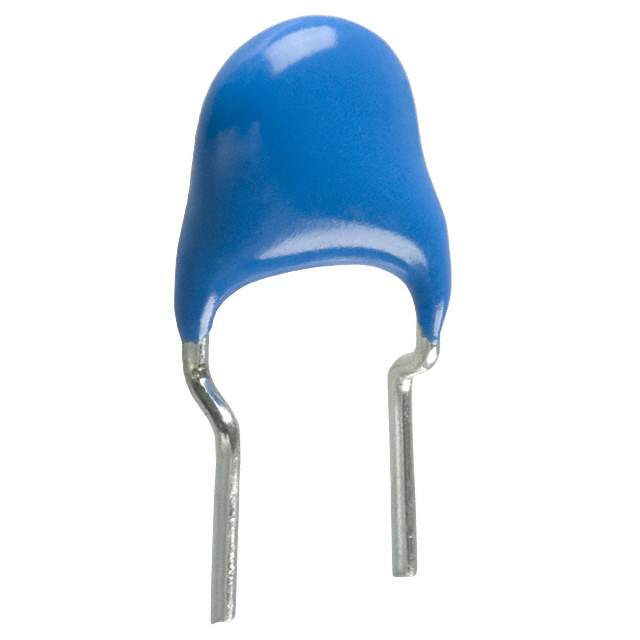

Same model may have multiple batches, images only for reference.

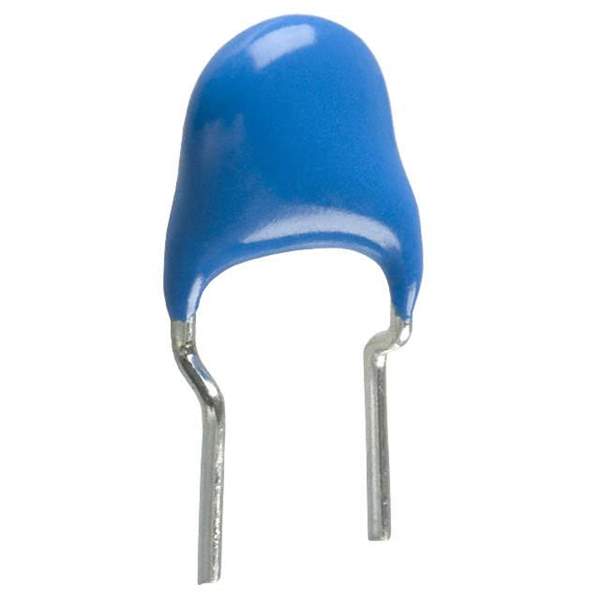

CK45-R3AD471K-NRA Real Image
Same model may have multiple batches, images only for reference.

CK45-R3AD471K-NRA

Part No CK45-R3AD471K-NRA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 470PF 1KV RADIAL / 470 pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CK45-RR
Package Bulk
Product Status Obsolete
Capacitance 470 pF
Tolerance ±10%
Voltage - Rated 1000V (1kV)
Temperature Coefficient R
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage, Low Dissipation Factor
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.276" Dia (7.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Lead Spacing 0.197" (5.00mm)
Lead Style Formed Leads - Kinked
Standard Package 1,000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1337870-CK45-R3AD471K-NRA
Ultra Librarian 3D Model Ultra Librarian CK45-R3AD471K-NRA CAD Model

Description

The TDK Corporation CK45-RR series is a ceramic capacitor with a capacitance of 470 pF and a voltage rating of 1000V (1kV).

  • Capacitance: 470 pF
  • Voltage Rating: 1000V (1kV)
  • Tolerance: ±10%
  • Temperature Coefficient: R
  • Packaging: Bulk
  • Size/Dimension: 0.276 inches Diameter (7.00mm)
  • Height Seated (Max): 0.433 inches (11.00mm)
  • Thickness (Max): Not Specified
  • Lead Spacing: 0.197 inches (5.00mm)
  • Leads: Formed Leads, Kinked Style
  • Mounting Type: Through Hole
  • Package/Case: Radial, Disc
  • Operating Temperature: -25°C to 125°C
  • ECCN: EAR99
  • Status: Obsolete
