Same model may have multiple batches, images only for reference.

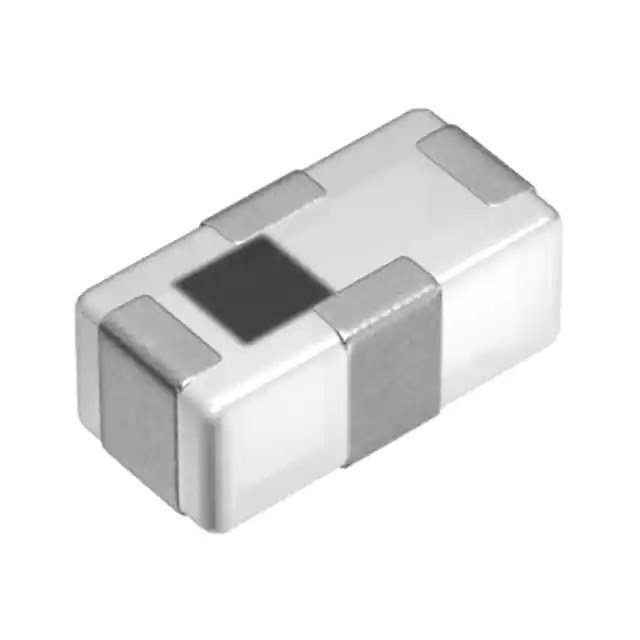

DEA100915LT-6319A1 Real Image
Same model may have multiple batches, images only for reference.

DEA100915LT-6319A1

Part No DEA100915LT-6319A1
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER LOW PASS 869.5MHZ 0402
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - RF Filters
Mfr TDK Corporation
Series DEA
Package Tape & Reel
Product Status Active
Frequency 869.5MHz Center
Bandwidth 91MHz
Filter Type Low Pass
Insertion Loss 0.5dB
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric), 4 PC Pad
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height (Max) 0.016" (0.40mm)
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 584360-DEA100915LT-6319A1
Ultra Librarian 3D Model Ultra Librarian DEA100915LT-6319A1 CAD Model

Description

The DEA100915LT-6319A1 is an RF filter from the DEA series by TDK Corporation.

  • Package: Tape and reel
  • Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Standard Package: 10,000 pcs
  • Frequency: 869.5MHz center
  • Filter Type: Low pass
  • Insertion Loss: 0.5dB
  • Height: 0.016" (0.40mm)
  • Bandwidth: 91MHz
  • Mounting: Surface mountable
  • Package/Case: 0402 (1005 Metric), 4 PC pad
  • Status: Active
  • REACH: Unaffected
