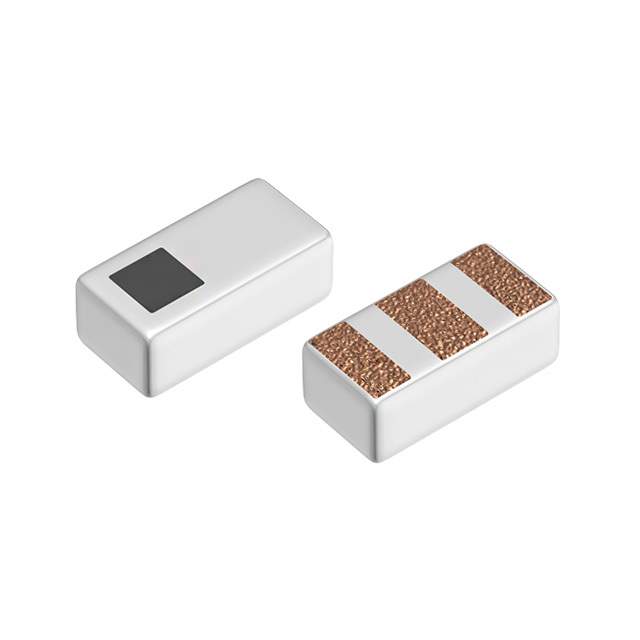

DEA162300HT-8047A1 Real Image
Same model may have multiple batches, images only for reference.

DEA162300HT-8047A1

Part No DEA162300HT-8047A1
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER HIGH PASS 2.4GHZ 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 11 Weeks
Features 2.4GHz Frequency High Pass RF Filter (Radio Frequency) - Bandwidth 0.5dB 0603 (1608 Metric), 3 PC Pad
Manufacturer TDK Corporation
Series DEA
Package Reel - TR
Mounting Surface Mount
Package 0603 (1608 Metric), 3 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 445-175383-2, 445-175383-1, 445-175383-6
Quantity per package 4000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 916867-DEA162300HT-8047A1
Ultra Librarian 3D Model Ultra Librarian DEA162300HT-8047A1 CAD Model

Description

The TDK DEA162300HT-8047A1 is a 2.4GHz frequency high pass RF filter with a bandwidth of 0.5dB.

  • Frequency: 2.4GHz
  • Filter Type: High Pass RF filter
  • Bandwidth: 0.5dB
  • Pads: 3 PC pads
  • Package Size: 0603 (1608 Metric)
  • Mounting: Surface Mounted
  • Package Type: Reel
  • Quantity per Reel: 4000 pieces
  • Series: DEA series
  • Category: Filters
  • ECCN: EAR99
  • Environment Resistant: Yes
  • Estimated Production Lead Time: 11 weeks
  • HTSUS: 8548.90.0100
