Same model may have multiple batches, images only for reference.

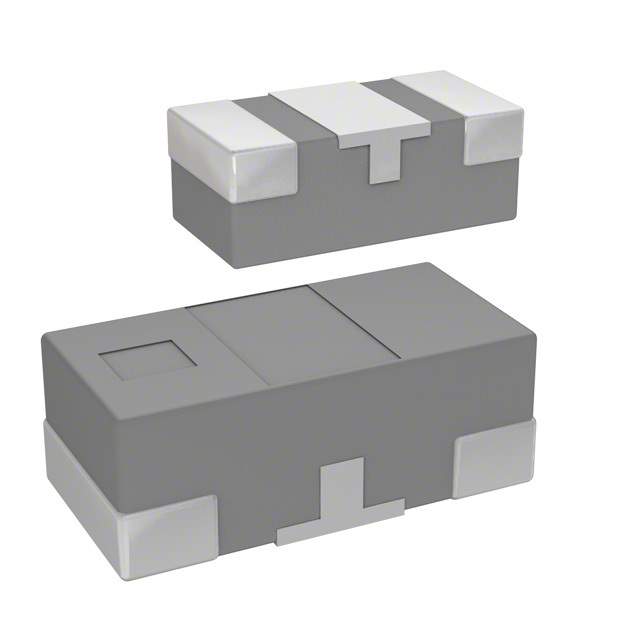

DEA162450BT-2181D1 Real Image
Same model may have multiple batches, images only for reference.

DEA162450BT-2181D1

Part No DEA162450BT-2181D1
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER BAND PASS 2.45GHZ 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 9 Weeks
Features 2.45GHz Center Frequency Band Pass RF Filter (Radio Frequency) Bandwidth 1.78dB 0603 (1608 Metric), 3 PC Pad
Manufacturer TDK Corporation
Series DEA
Package Reel - TR
Mounting Surface Mount
Package 0603 (1608 Metric), 3 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 445-15640-1, 445-15640-2, 445-15640-6
Quantity per package 4000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 916869-DEA162450BT-2181D1
Ultra Librarian 3D Model Ultra Librarian DEA162450BT-2181D1 CAD Model

Description

The TDK Corporation DEA series is a band pass RF filter with a center frequency of 2.45GHz and a bandwidth of 1.78dB.

  • Series: DEA
  • Filter Type: Band Pass RF Filter
  • Center Frequency: 2.45GHz
  • Bandwidth: 1.78dB
  • Package: 0603 (1608 Metric), 3 PC Pad
  • Applications: wireless communication systems, Bluetooth, and WLAN
  • Package Type: Reel
  • Quantity per Package: 4,000 pieces
  • Popularity: High
  • Supply and Demand Status: Balanced
