Same model may have multiple batches, images only for reference.

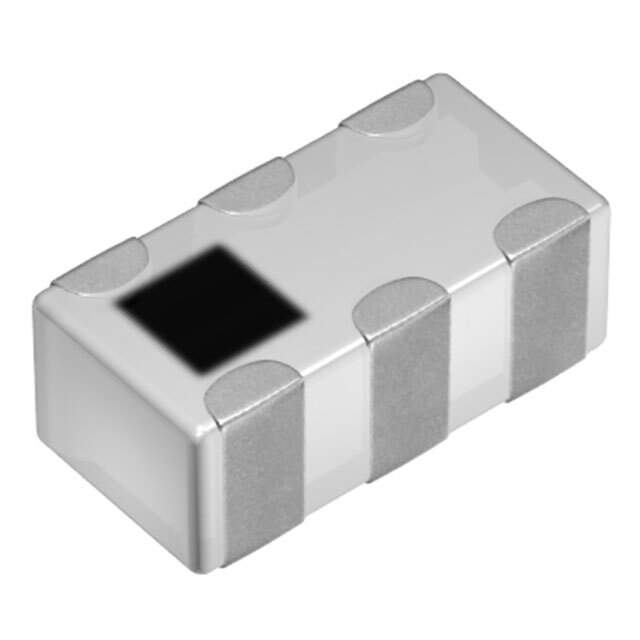

DEA162690LT-1217A2 Real Image
Same model may have multiple batches, images only for reference.

DEA162690LT-1217A2

Part No DEA162690LT-1217A2
Manufacturer TDK Corporation
Catalog RF Filters
Description FILTER LOWPASS 2.5 GHZ WIMAX SMD
Datasheet
DEA162690LT-1217A2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency 2.495GHz Center
Bandwidth 390MHz
Filter Type Low Pass
Insertion Loss 0.32dB
Mounting SMD (SMT)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height (Max) 0.028" (0.70mm)
Win Source Part Number 040050-DEA162690LT-1217A2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DEA162690LT-1217A2 CAD Model

Description

Product Overview

The DEA162690LT-1217A2 component is engineered for optimized performance, offering exceptional stability and functionality within a wide range of applications.

Features and Benefits

  • Excellent signal integrity and purity.
  • Compact footprint for space-saving designs.
  • Low power consumption for eco-efficiency.
  • Easy to integrate into complex systems.

Applications

  • Satellite communications
  • Advanced robotics
  • Networking infrastructure
  • Portable electronic devices
