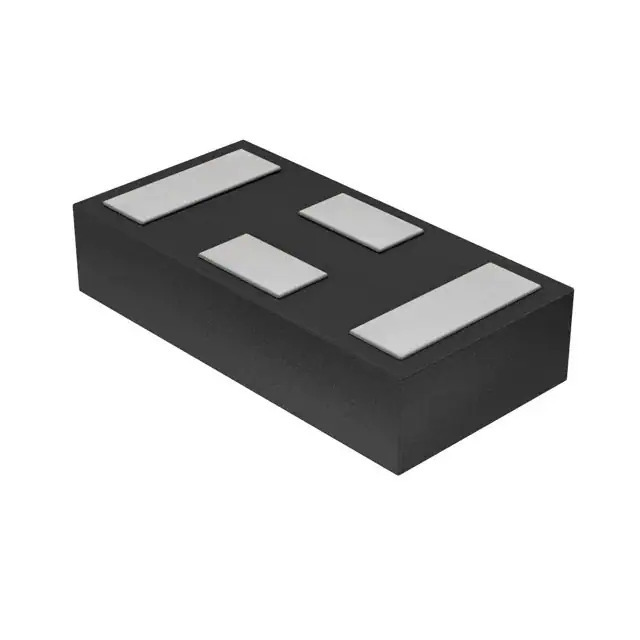

Same model may have multiple batches, images only for reference.
DEA165150HT-8025C2 TDK Corporation
Same model may have multiple batches, images only for reference.

DEA165150HT-8025C2

Part No DEA165150HT-8025C2
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER HIGH PASS 5.5GHZ 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - RF Filters
Mfr TDK Corporation
Series DEA
Package Tape & Reel
Product Status Active
Frequency 5.5GHz Center
Bandwidth 700MHz
Filter Type High Pass
Ripple -
Insertion Loss 0.4dB
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric), 4 PC Pad
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height (Max) 0.031" (0.80mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1373384-DEA165150HT-8025C2
Ultra Librarian 3D Model Ultra Librarian DEA165150HT-8025C2 CAD Model

Description

The DEA165150HT-8025C2 is a surface mount RF filter from TDK Corporation.

  • Manufacturer: TDK Corporation
  • Center Frequency: 5.5 GHz
  • Bandwidth: 700 MHz
  • Series: DEA
  • Package: 0603 (1608 Metric), 4 PC Pad
  • Insertion Loss: 0.4 dB
  • Height: 0.80 mm
  • Application: High Pass Filtering
