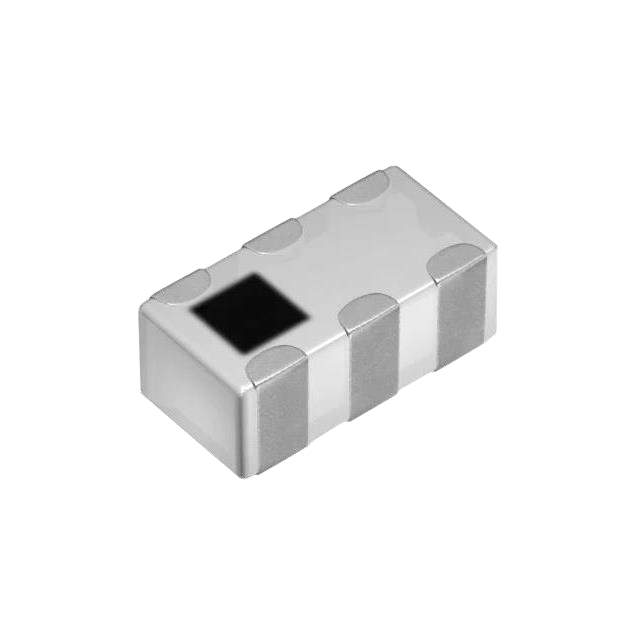

DPX165950DT-8044A1 Real Image
Same model may have multiple batches, images only for reference.

DPX165950DT-8044A1

Part No DPX165950DT-8044A1
Manufacturer TDK Corporation
Catalog RF Multiplexers
Description MULTILAYER DPX FOR WLAN/GPS/5G / RF Diplexer 704MHz ~ 1.61GHz / 2.4GHz ~ 5.95GHz 0603 (1608 Metric), 6 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Multiplexers
Mfr TDK Corporation
Series DPX
Package Tape & Reel
Type Diplexer
Frequency Bands (Low / High) 704MHz ~ 1.61GHz / 2.4GHz ~ 5.95GHz
Low Band Attenuation (min / max dB) 16.00dB / 20.00dB
High Band Attenuation (min / max dB) 20.00dB / 23.00dB
Return Loss (Low Band / High Band) 10.03dB / 10.03dB
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric), 6 PC Pad
MSL Level 1 (Unlimited)
Other Names 445-DPX165950DT-8044A1TR,445-DPX165950DT-8044A1DKR,445-DPX165950DT-8044A1CT
Standard Package 4,000
Win Source Part Number 961577-DPX165950DT-8044A1
Ultra Librarian 3D Model Ultra Librarian DPX165950DT-8044A1 CAD Model

Description

The 961577-DPX165950DT-8044A1 is an RF multiplexer from the DPX series.

  • Type: RF Multiplexer
  • Series: DPX
  • Package: Tape & Reel
  • Mounting: SMD (SMT)
  • Frequency Bands: 704MHz to 1.61GHz and 2.4GHz to 5.95GHz
  • Low Band Attenuation: 16dB
  • High Band Attenuation: 23dB
  • Return Loss: 10.03dB (Low and High Bands)
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99
