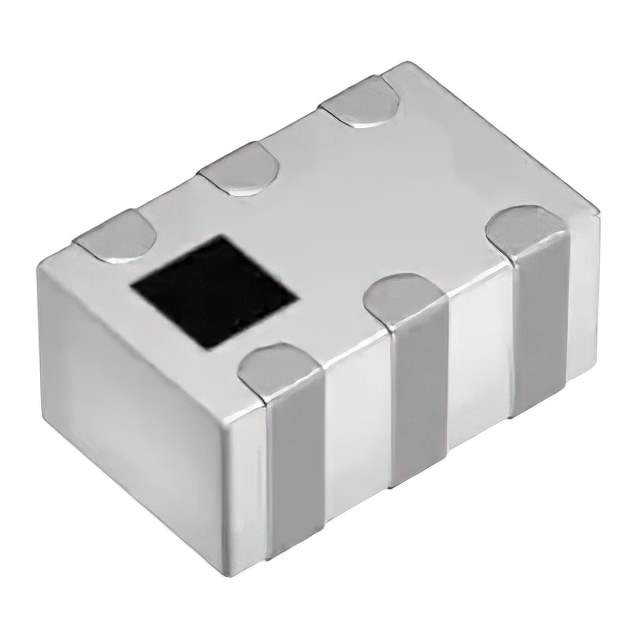

DPX205850DT-9036A1-H Real Image
Same model may have multiple batches, images only for reference.

DPX205850DT-9036A1-H

Part No DPX205850DT-9036A1-H
Manufacturer TDK Corporation
Catalog RF Multiplexers
Description RF DIPLEXER 2.45GHZ/5.5GHZ 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Type Diplexer
Frequency Bands (Low / High) 2.4GHz ~ 2.5GHz / 5.15GHz ~ 5.85GHz
Low Band Attenuation (min / max dB) 30.00dB / 36.00dB
High Band Attenuation (min / max dB) 23.00dB/ 38.00dB
Return Loss (Low Band / High Band) 9.54dB / 9.54dB
Mounting Style SMD
Manufacturer Package 0805 (2012 Metric)
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806716-DPX205850DT-9036A1-H
Ultra Librarian 3D Model Ultra Librarian DPX205850DT-9036A1-H CAD Model

Description

The TDK Corporation DPX205850DT-9036A1-H is a diplexer used for SMD mounting style.

  • Frequency Band: 2.4GHz ~ 2.5GHz / 5.15GHz ~ 5.85GHz
  • Low Band Attenuation: 30.00dB / 36.00dB (min/max)
  • High Band Attenuation: 23.00dB / 38.00dB (min/max)
  • Return Loss: 9.54dB / 9.54dB (low band / high band)
  • Packaging: Reel
  • Manufacturer Package: 0805 (2012 Metric)
  • Manufacturer Pack Quantity: 2,000
  • Status: Balance
  • MSL Level: 1 (unlimited)
