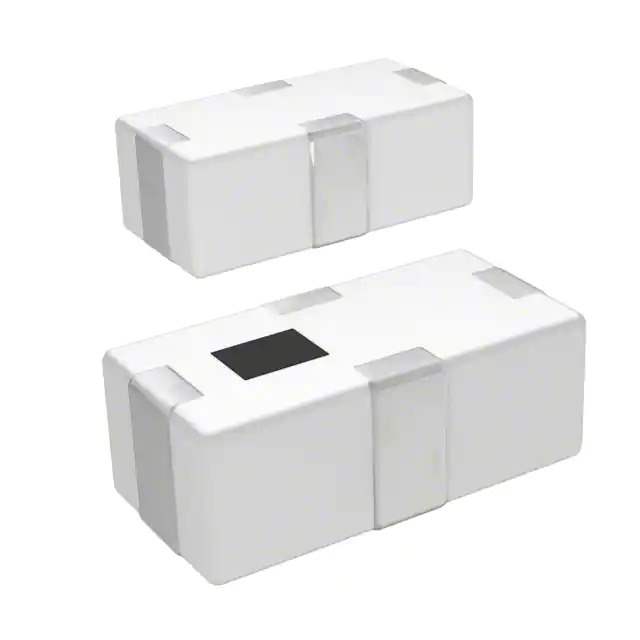

DPX165950DT-8118A1 Real Image
Same model may have multiple batches, images only for reference.

DPX165950DT-8118A1

Part No DPX165950DT-8118A1
Manufacturer TDK Corporation
Catalog RF Multiplexers
Description RF DIPLEXER 2.45/5.425GHZ 0603 / RF Diplexer 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz 0603 (1608 Metric), 4 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Multiplexers
Mfr TDK Corporation
Series DPX
Package Tape & Reel
Product Status Active
Type Diplexer
Frequency Bands (Low / High) 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz
Low Band Attenuation (min / max dB) 20.00dB / 23.00dB
High Band Attenuation (min / max dB) 20.00dB / 27.00dB
Return Loss (Low Band / High Band) 9.5dB / 9.5dB
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric), 4 PC Pad
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 869246-DPX165950DT-8118A1
Ultra Librarian 3D Model Ultra Librarian DPX165950DT-8118A1 CAD Model

Description

The DPX165950DT-8118A1 is a diplexer designed for RF and wireless applications.

  • Product Name: DPX165950DT-8118A1
  • Applications: RF and Wireless
  • Frequency Bands: 2.4GHz to 2.5GHz and 4.9GHz to 5.95GHz
  • Low Band Attenuation: 20.00dB to 23.00dB
  • High Band Attenuation: 20.00dB to 27.00dB
  • Return Loss (Low Band): 9.5dB
  • Return Loss (High Band): 9.5dB
  • Mounting Technology: Surface Mount Technology
  • Package: 0603 (1608 Metric)
  • PC Pads: 4
  • Manufacturer: TDK Corporation
  • Market Status: Active
  • Category: RF and Wireless, RF Multiplexers
