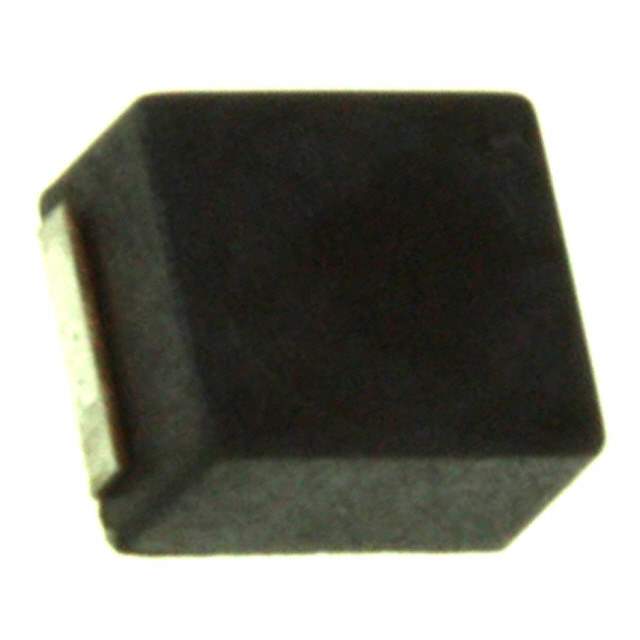

FLF3215T-101M Real Image
Same model may have multiple batches, images only for reference.

FLF3215T-101M

Part No FLF3215T-101M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 100UH 280MA 2 OHM SMD
Datasheet
FLF3215T-101M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series FLF
Packaging Reel - TR
Part Status Obsolete(EOL)
Type Wirewound
Material - Core Ferrite
Inductance 100μH
Tolerance ±20%
Current Rating 280mA
Current - Saturation 200mA
Shielding Shielded
DC Resistance (DCR) 2.4 Ohm Max
Q @ Freq 40 @ 1MHz
Frequency - Self Resonant 6MHz
Operating Temperature Range -40°C ~ 125°C
Test Frequency 1MHz
Mounting SMD
Package 1210
Size 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Maximum) 0.065" (1.65mm)
Manufacturer Homepage www.tdk.com
Win Source Part Number 745777-FLF3215T-101M
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FLF3215T-101M CAD Model

Description

The TDK Corporation FLF series FLF3215T-101M is a wirewound shielded inductor that has an operating temperature range of -40°C to 125°C.

  • Package: Reel
  • Mounting Type: SMD
  • Inductance: 100μH
  • Current Rating: 280mA
  • Tolerance: ±20%
  • Material-Core: Ferrite
  • Current-Saturation: 200mA
  • Q @ Freq: 40 @ 1MHz
  • Frequency-Self Resonant: 6MHz
  • Test Frequency: 1MHz
  • Size: 0.126” L x 0.098” W (3.20mm x 2.50mm)
  • Category: Inductors, Coils, Chokes
  • Supply and Demand Status: Limited
  • Obsolete (EOL): Yes
  • Height-Seated (Maximum): 0.065” (1.65mm)
  • Alternative Parts (Cross-Reference): CBC3225T101KR, BSF3015LQHMU101MT, NLFC322522T-101K, FLF3215T-101M
