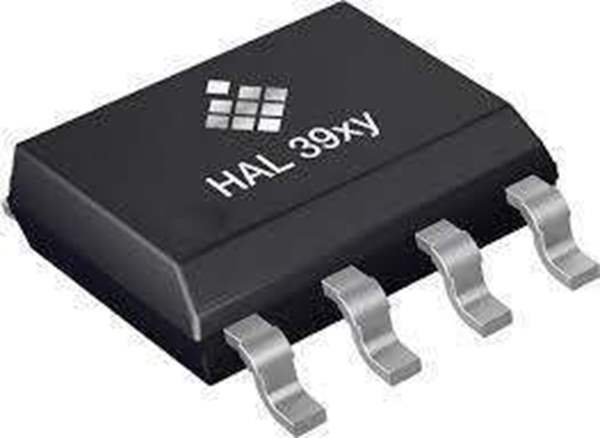

HAL3900DJ-A TDK-Micronas GmbH
Same model may have multiple batches, images only for reference.

HAL3900DJ-A

Part No HAL3900DJ-A
Manufacturer TDK Corporation
Catalog Position Sensors - Angle, Linear Position Measuring
Description PROGRAMMABLE 3D SENSORS WITH STR
Datasheet
HAL3900DJ-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1306928-HAL3900DJ-A
Category Sensors, Transducers Position Sensors Angle, Linear Position Measuring
Manufacturer TDK-Micronas GmbH
Packaging Bulk
Part Status Active
Operating Supply Current 12 mA
Output Current 50 mA
Operating Supply Voltage 3 V to 5.5 V
Operating Temperature (Min) - 40 C
Operating Temperature (Max) + 170 C
Mounting Style SMD/SMT
Ultra Librarian 3D Model Ultra Librarian HAL3900DJ-A CAD Model

Description

  • 3D position detection supporting transmission of two angles out of BX, BY or BZ
  • Temperature-compensated values of BX, BY and BZ accessible via SPI
  • Accurate angular measurement up to 360° and linear position detection
  • Compensation of magnetic stray-fields (rotary or linear position detection)
  • SEooC ASIL B ready according to ISO 26262 to support Functional Safety applications
  • Supply voltages between 3.0 V and 5.5 V
  • SPI communication up to 5 MHz
  • 16-bit data transmission with CRC and rolling counter
  • Up to 16 kSps sampling frequency
  • Operates from 40 °C up to 170 °C junction temperature (Max. Ambient Temperature: TA,absmax = 160 °C)
  • Programming via SPI interface
  • Various configurable signal processing parameter, like output gain and offset, reference position, temperature dependent offset, etc.
  • Programmable arbitrary output characteristic with 17 variable or 33 fixed setpoints
  • Programmable characteristics in a non-volatile memory (EEPROM) with redundancy and lock function
  • Read access on non-volatile memory after customer lock
  • On-Chip diagnostics of different functional blocks of the sensor
  • Low-power mode with wake-up by magnetic field/position information change or external wake-up pin
  • SOIC-8 and SSOP-16 SMD package
