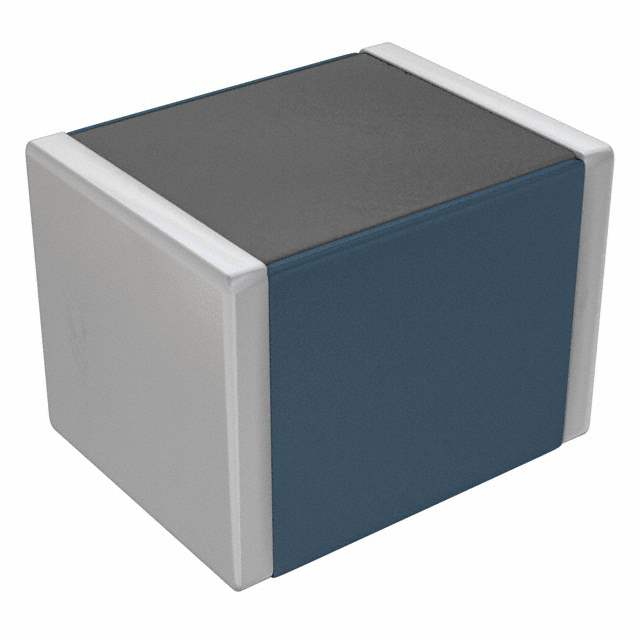

HF70ACC635050-T Real Image
Same model may have multiple batches, images only for reference.

HF70ACC635050-T

Part No HF70ACC635050-T
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 500 OHM 2520 1LN
Datasheet
HF70ACC635050-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Filter Type Power Line
Number of Lines 1
Impedance @ Frequency 500 Ohm @ 100MHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 40 mOhm
Mounting SMD (SMT)
Height (Max) 0.198" (5.04mm)
Dimension 0.252" L x 0.197" W (6.40mm x 5.00mm)
Win Source Part Number 068047-HF70ACC635050-T
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HF70ACC635050-T CAD Model

Description

The electronic component with Id 152090 is a power line filter manufactured by TDK Corporation.

  • Packaging: Reel - TR
  • Maximum Current Rating: 3A
  • Mounting Type: SMD (SMT)
  • Lines: Single
  • Impedance: 500 Ohm @ 100MHz
  • DC Resistance (DCR) (Max): 40 mOhm
  • Category: Filters
  • Status: Not For New Designs
  • Popularity: Medium
  • Supply and Demand Status: Limited
