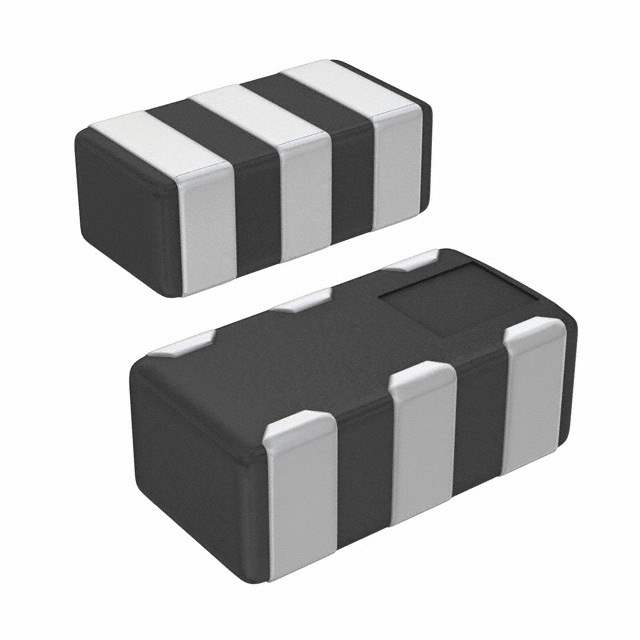

HHM22106C1 Real Image
Same model may have multiple batches, images only for reference.

HHM22106C1

Part No HHM22106C1
Manufacturer TDK Corporation
Catalog RF Directional Coupler
Description DIRECTIONAL COUPLER 700-2700MHZ
Datasheet
HHM22106C1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Coupler Type Standard
Frequency 700MHz to 2.7GHz
Coupling Factor 28.5dB
Insertion Loss 0.2dB
Dimension 0603 (1608 Metric), 6 PC Pad
Win Source Part Number 040496-HHM22106C1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian HHM22106C1 CAD Model

Description

The TDK Corporation 040496-HHM22106C1 is a standard coupler type.

  • Frequency Range: 700MHz to 2.7GHz
  • Coupling Factor: 28.5dB
  • Insertion Loss: 0.2dB
  • Application: RF/IF and RFID
  • Packaging: Reel - TR
  • Dimension: 0603 (1608 Metric), 6 PC Pad
  • Supply and Demand Status: Sufficient
