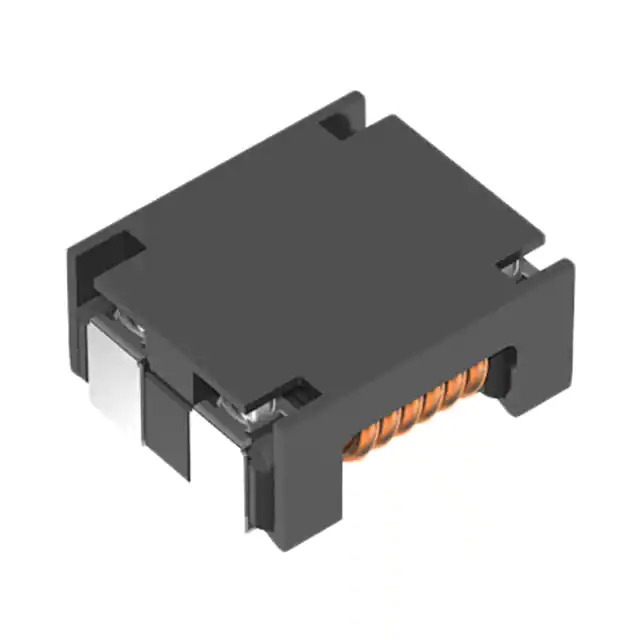

LCV70-701-2PL-TL00

Name: LCV70-701-2PL-TL00
Brand: TDK Corporation
SKU: 1369372
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LCV70-701-2PL-TL00
Manufacturer	TDK Corporation
Catalog	Common Mode Chokes
Description	CMC 7.5UH 4A 2LN 700OHM SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - Common Mode Chokes
Mfr	TDK Corporation
Series	LCV70
Package	Tape & Reel
Product Status	Active
Filter Type	Power Line
Number of Lines	2
Impedance @ Frequency	700 Ohms @ 100 MHz
Inductance @ Frequency	7.5 µH @ 1 MHz
Current Rating (Max)	4A
DC Resistance (DCR) (Max)	15mOhm
Voltage Rating - DC	80V
Temperature Range - Operating	-40°C ~ 125°C
Ratings	AEC-Q200
Approval Agency	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.276" L x 0.236" W (7.00mm x 6.00mm)
Height (Max)	0.138" (3.50mm)
Package / Case	Horizontal, 4 PC Pad
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Win Source Part Number	1369372-LCV70-701-2PL-TL00
Ultra Librarian 3D Model	Ultra Librarian LCV70-701-2PL-TL00 CAD Model

Alternative Products

Description

The LCV70-701-2PL-TL00 is a common mode choke from TDK Corporation's LCV70 series.

Series: LCV70
Mounting Type: Surface Mount
Package / Case: Horizontal, 4 PC Pad
Voltage Rating: 80V
Current Rating: 4A
Impedance @ Frequency: 700 Ohms @ 100 MHz
Temperature Range: -40°C to 125°C
Rating: AEC-Q200
REACH Status: Unaffected
