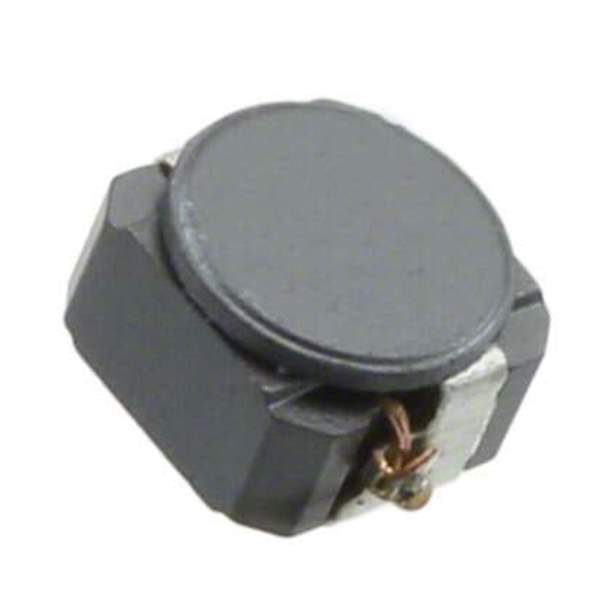

LTF3020T-3R3N-D Real Image
Same model may have multiple batches, images only for reference.

LTF3020T-3R3N-D

Part No LTF3020T-3R3N-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 3.3UH 1.33A 110 MOHM
Datasheet
LTF3020T-3R3N-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 3.3μH
Tolerance ±30%
Current Rating 1.33A
Current - Saturation 990mA
DC Resistance (DCR) 110 mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C to 150°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 1064266-LTF3020T-3R3N-D
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LTF3020T-3R3N-D CAD Model

Description

The TDK Corporation LTF3020T-3R3N-D is a wirewound inductor with an inductance of 3.3μH and a current rating of 1.33A.

  • Inductance: 3.3μH
  • Current Rating: 1.33A
  • Height: 0.079" (2.00mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±30%
  • Rating: AEC-Q200
  • Core Material: Ferrite
  • DC Resistance (DCR): 110 mOhm Max
  • Current Saturation: 990mA
  • Operating Temperature: -40°C to 150°C
  • Category: Inductors, Coils, Chokes
  • Status: Active
  • Supply and Demand: Balanced
