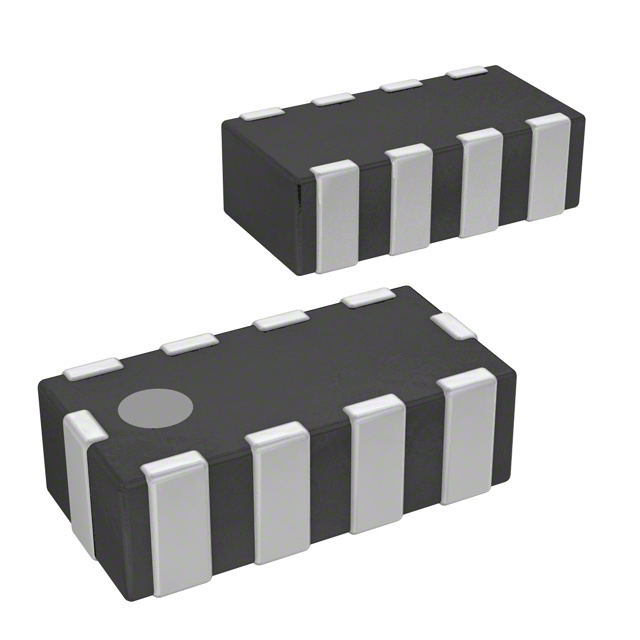

MEA2010LD220T TDK Corporation
Same model may have multiple batches, images only for reference.

MEA2010LD220T

Part No MEA2010LD220T
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 22PF 240MHZ SMD
Datasheet
MEA2010LD220T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 3rd
Technology LC
Number of Channels 4
Center / Cutoff Frequency 240MHz (Cutoff)
Current 100mA
Values C = 22pF
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 6.3V
Mounting SMD (SMT)
Dimension 0.079" L x 0.039" W (2.00mm x 1.00mm)
Height 0.024" (0.60mm)
Win Source Part Number 058448-MEA2010LD220T
Ultra Librarian 3D Model Ultra Librarian MEA2010LD220T CAD Model

Description

The MEA2010LD220T is a low pass filter from TDK Corporation.

  • Voltage Rating: 6.3V
  • Suitable for: data lines in mobile devices
  • Package: SMD
  • Center/Cutoff Frequency: 240MHz
  • Status: active
  • Supply and demand status: balance
