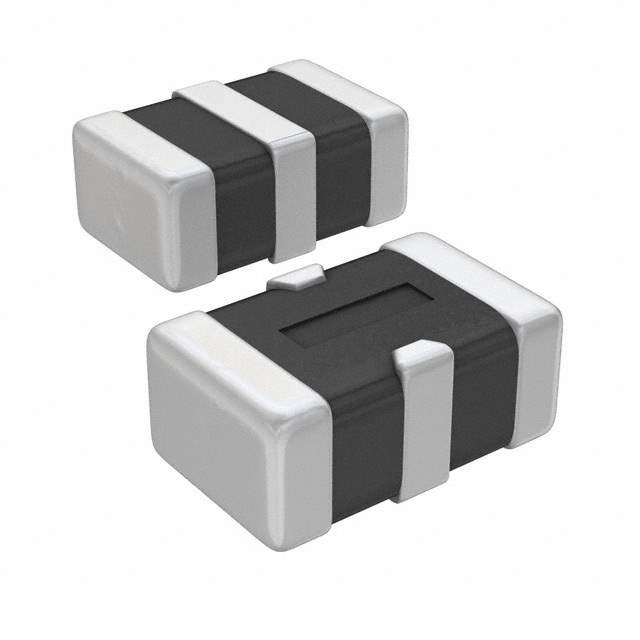

MEM2012P75R0 Real Image
Same model may have multiple batches, images only for reference.

MEM2012P75R0

Part No MEM2012P75R0
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(PI) 75MHZ SMD
Datasheet
MEM2012P75R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 3rd
Technology LC (Pi)
Number of Channels 1
Center / Cutoff Frequency 75MHz (Cutoff)
Attenuation Value 20dB @ 700MHz to 2GHz
Current 200mA
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 12V
Mounting SMD (SMT)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height 0.030" (0.76mm)
Win Source Part Number 103091-MEM2012P75R0
Ultra Librarian 3D Model Ultra Librarian MEM2012P75R0 CAD Model

Description

The TDK Corporation MEM2012P75R0 filter is designed for data lines in mobile devices.

  • Type: low-pass filter
  • Cutoff Frequency: 75MHz
  • Attenuation Value: 20dB @ 700MHz to 2GHz
  • Current Rating: 200mA
  • Mounting: surface mountable
  • Height: 0.030" (0.76mm)
  • Technology: LC (Pi) technology
  • Channel: one channel
  • Filter Order: 3rd order filter order
  • Status: obsolete (EOL)
  • Operating Temperature Range: -40°C to 85°C
