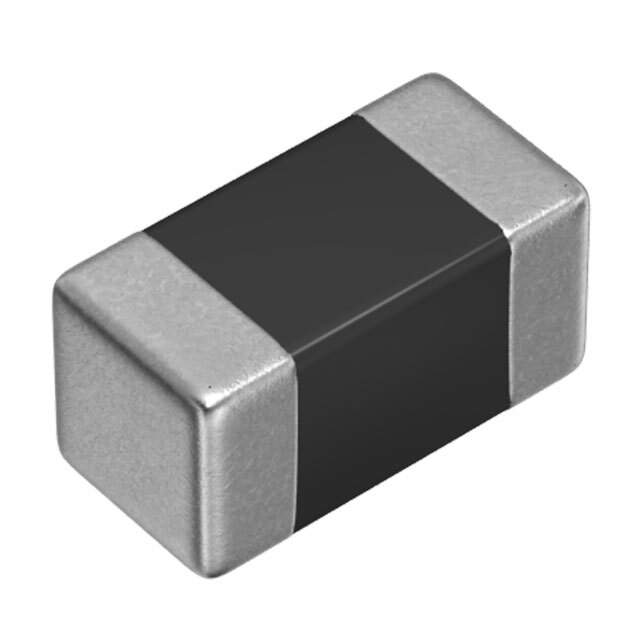

MLF1005AR56KT Real Image
Same model may have multiple batches, images only for reference.

MLF1005AR56KT

Part No MLF1005AR56KT
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 560NH 10MA 700 MOHM
Datasheet
MLF1005AR56KT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Type Multilayer
Material - Core Ferrite
Inductance 560nH
Tolerance ±10%
Current Rating 10mA
DC Resistance (DCR) 700 mOhm Max
Q @ Freq 25 @ 10MHz
Frequency - Self Resonant 170MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 10MHz
Mounting SMD (SMT)
Case / Package 0402 (1005 Metric)
Height - Seated (Max) 0.022" (0.55mm)
Win Source Part Number 099152-MLF1005AR56KT
Ultra Librarian 3D Model Ultra Librarian MLF1005AR56KT CAD Model

Description

The TDK Corporation MLF1005AR56KT is an obsolete (EOL) electronic component with a multilayer type and a ferrite core material.

  • Height: 0.022" (0.55mm)
  • Current Rating: 10mA

This product has a limited supply and demand status and is part of the Inductors, Coils, Chokes category.
