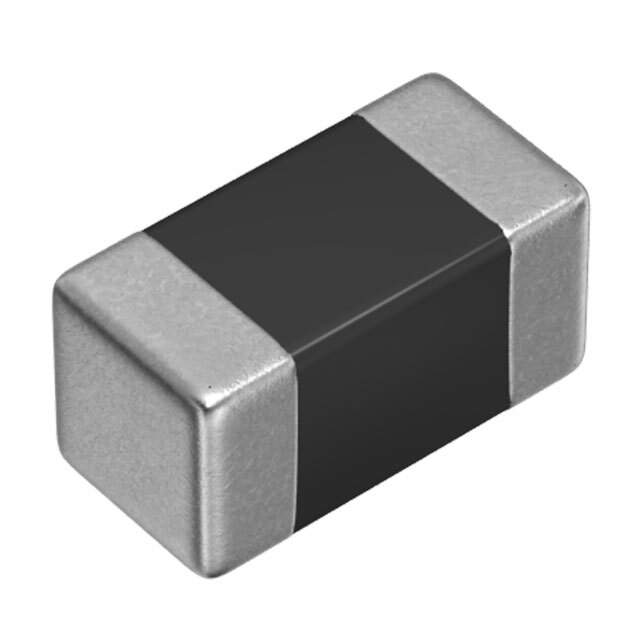

MLF1005DR15KT Real Image
Same model may have multiple batches, images only for reference.

MLF1005DR15KT

Part No MLF1005DR15KT
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 150NH 25MA 800 MOHM
Datasheet
MLF1005DR15KT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Type Multilayer
Material - Core Ferrite
Inductance 150nH
Tolerance ±10%
Current Rating 25mA
DC Resistance (DCR) 800 mOhm Max
Q @ Freq 10 @ 25MHz
Frequency - Self Resonant 350MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 25MHz
Mounting SMD (SMT)
Case / Package 0402 (1005 Metric)
Height - Seated (Max) 0.022" (0.55mm)
Win Source Part Number 099230-MLF1005DR15KT
Ultra Librarian 3D Model Ultra Librarian MLF1005DR15KT CAD Model

Description

The TDK MLF1005DR15KT is a high-quality multilayer inductor that is designed to meet the unique needs of your project. It is a reliable and trustworthy component that is manufactured by TDK, a well-known brand in the electronics industry. This component is designed for use in a variety of applications, including inductors, coils, and chokes.

  • Current Rating: 25mA
  • Inductance: 150nH

It is available in reel packaging and has a temperature range of -40°C to 85°C.
