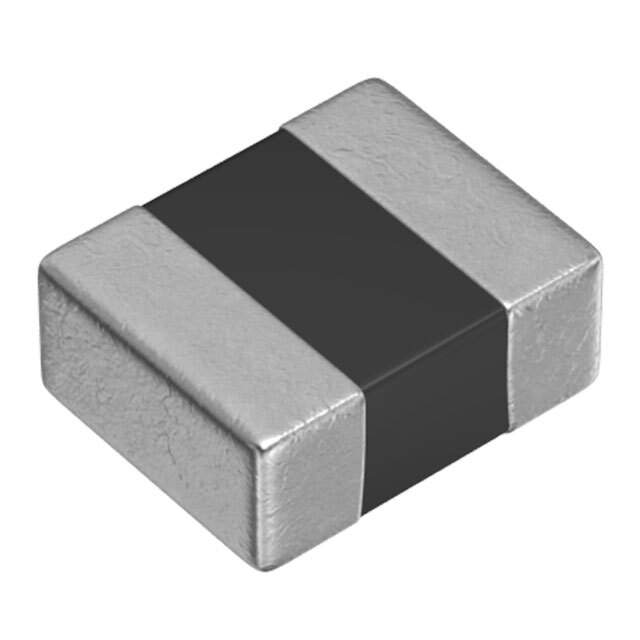

MLP2016S4R7MT0S1 Real Image1 MLP2016S4R7MT0S1 Real Image2
Same model may have multiple batches, images only for reference.
MLP2016S4R7MT0S1 Real Image1 MLP2016S4R7MT0S1 Real Image2
MLP2016S4R7MT0S1 Real Image1 MLP2016S4R7MT0S1 Real Image2
Same model may have multiple batches, images only for reference.

MLP2016S4R7MT0S1

Part No MLP2016S4R7MT0S1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 800MA 270 MOHM
Datasheet
MLP2016S4R7MT0S1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Multilayer
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 800mA
DC Resistance (DCR) 351 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 2MHz
Mounting SMD (SMT)
Case / Package 0806 (2016 Metric)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 059018-MLP2016S4R7MT0S1
Ultra Librarian 3D Model Ultra Librarian MLP2016S4R7MT0S1 CAD Model

Description

The TDK Corporation MLP2016S4R7MT0S1 is a high-quality multilayer inductor that is designed to offer superior performance and reliability.

  • Current Rating: With a current rating of 800mA.
  • Inductance: and an inductance of 4.7μH, this inductor is ideal for use in a wide range of applications, including inductors, coils, and chokes.
  • Tolerance: The inductor has a tolerance of ±20%.
  • DC Resistance: and a DCR (DC Resistance) of 351 mOhm Max, making it highly accurate and efficient.
  • Operating Temperature: It is also capable of operating @ temperatures of up to -40°C to 125°C, making it suitable for use in harsh environments.
