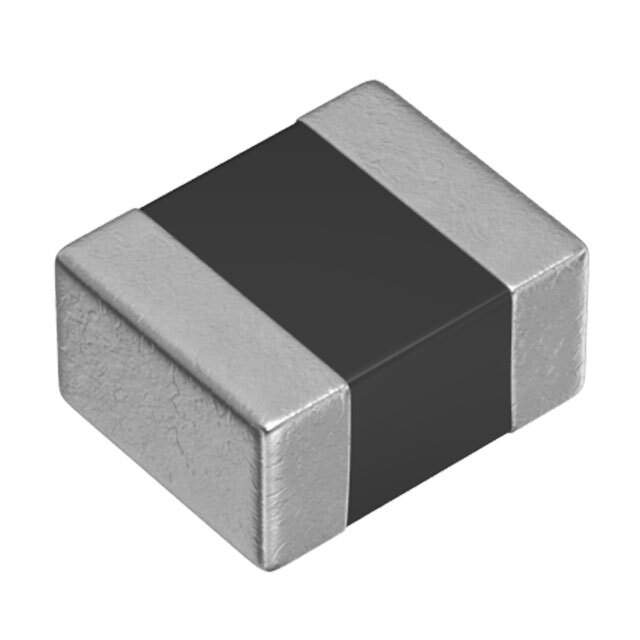

MLP2520W2R2MT0S1 Real Image
Same model may have multiple batches, images only for reference.

MLP2520W2R2MT0S1

Part No MLP2520W2R2MT0S1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.2A 208 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Tape and Reel
Type Multilayer
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating (Amps) 1.2A
Shielding Shielded
DC Resistance (DCR) 208mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 2MHz
Mounting Style SMD
Manufacturer Package 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Parts Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Win Source Part Number 725271-MLP2520W2R2MT0S1
Popularity Low
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MLP2520W2R2MT0S1 CAD Model

Description

The MLP2520W2R2MT0S1 is a multilayer inductor manufactured by TDK Corporation.

  • Usage: widely used in various electronic devices
  • Packaging: tape and reel
  • Mounting Style: SMD
  • Shielding: has a shielding feature
  • Inductance: 2.2μH with a tolerance of ±20%
  • Core Material: ferrite
  • Supply and demand status: sufficient.
  • Known for: its high performance and reliability, making it an ideal choice for use in electronic devices.
