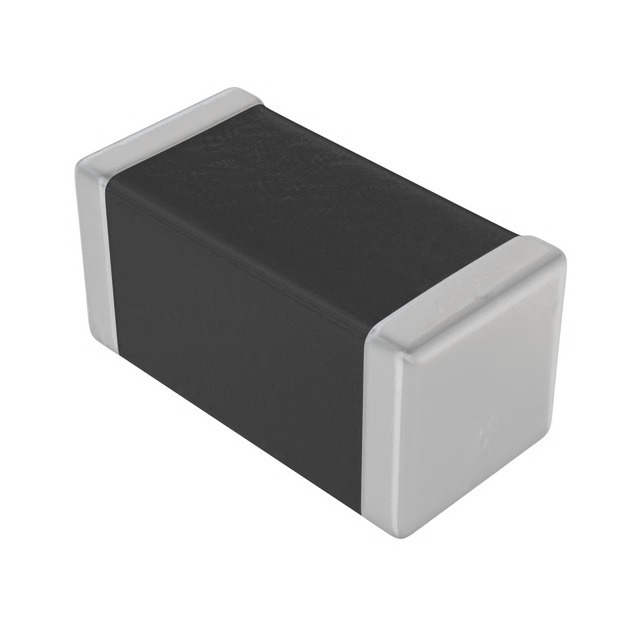

MLZ1005M2R2WT000 TDK Corporation
Same model may have multiple batches, images only for reference.

MLZ1005M2R2WT000

Part No MLZ1005M2R2WT000
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductors (Coils) | FIXED IND 2.2UH 350MA 550 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel
Type Multilayer
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating (Amps) 350mA
Current - Saturation 60mA
Shielding Shielded
DC Resistance (DCR) 550mOhm
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 2MHz
Mounting Style SMD
Manufacturer Package 0402 (1005 Metric)
Supplier Device Package 0402 (1005 Metric)
Parts Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Maximum) 0.022" (0.55mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 725280-MLZ1005M2R2WT000
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MLZ1005M2R2WT000 CAD Model

Description

The TDK MLZ1005M2R2WT000 is a multilayer inductor that is shielded to prevent interference.

  • Inductance: 2.2μH
  • Tolerance: ±20%
  • Material: Ferrite
  • Saturation Current: 60mA
  • Popularity: popular
  • Supply and demand status: sufficient
  • Manufacturer: TDK Corporation
  • Packaging: Reel
